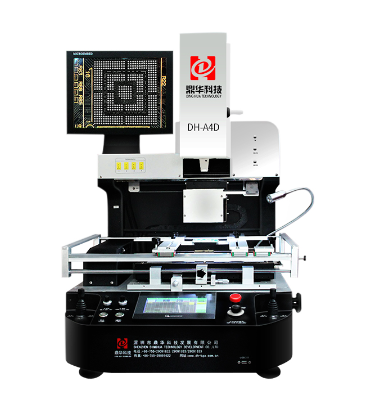

DINGHUA TECHNOLOGY DH-A4D BGA rework station (6800W, 1x1~90x90mm)

Power supply: 220V +/- 10%, 50/60HZ

Rated power: 6800W

Upper power: 1200W

Lower popwer: the 2nd zone: 1200W, the 3rd zone（IR）:4200W

IR zone: movement left or right 100mm

PCB Positioning: Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support” + V-groove pcb bracket + universal fixtures.

Temperature control: K sensor, close loop, PID

PCB size: Min 10*10mm, Max:500*420mm

Chip fine-tuning: left/right:+/- 15mm, back and frond:+/- 15mm, 60° rotation

Camera manification: 10x ~100x

Chip size: 1*1~90*90mm

Chip spacing: 0.15mm

Temp ports: 4 pcs

Placement accuracy: +/-0.01mm

Dimension: 700*700*950mm

Net weight: 97kg
