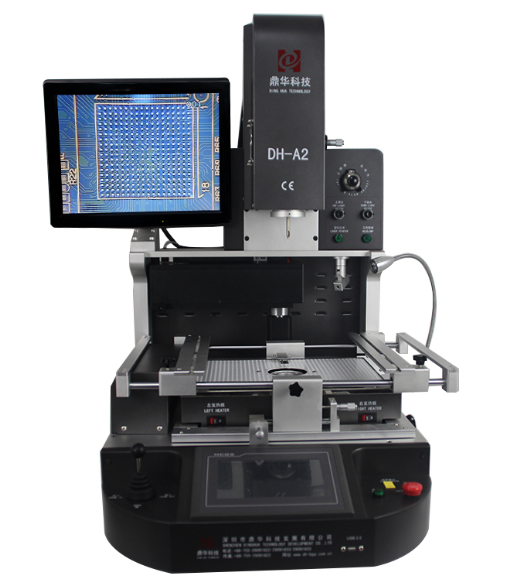

DINGHUA TECHNOLOGY DH-A2 Automatic BGA rework station (5500W, 1x1~80x80mm)
ModelDH-A2
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Rataed power: 5500
Upper power: 1200W
Lower power: 1200W
IR power: 3000W
Dimension: L600*W700*H850mm
PCB positioning: V-groove, PCB bracket moved at X-axis, and with universal fixtures
Temperature controll: K-type, cloosed-loop and PID
Temperature accuracy: ± 1 ℃
Alignment system: 0.01mm
PCB size: Max 450*500mm Min 10*10mm
Chip size: 1*1~80*80mm
Min space: 0.1mm
External temperatrue port: 1 pcs (optional)
Weight: 70kg
