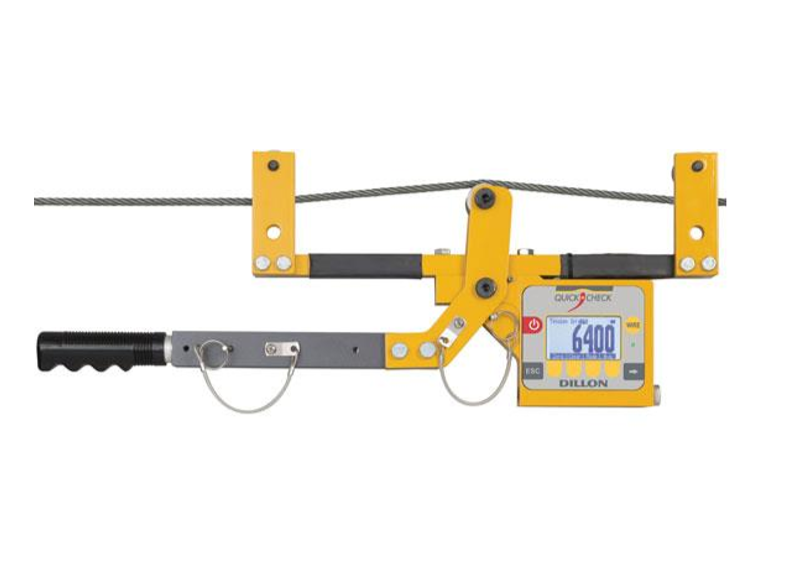

DILLON Quick Check – T Quick Check-T Wire Tension Meter (4500 kg)

Markets / Industries: Tower and stack guy wires, cable barriers, overhead transit wires, bridges, fall arrest, stage support, aircraft cables and public utilities

Capacities: 10,000 lb 4500 kg

Rope Calibrations: Up to 20 (must be specified at time of order)

Cable Diameter Range: 3/16” to 1” 4.75 mm to 25.4 mm

Display Informative: 128 x 64 dot-graphic LCD display

Shows: Unit, Wire Type, Sheave, Temperature, Target Tension, Site ID, Leg, Wire, GPS Coordinates, and Battery.

Display Backlight: Yes (configurable intensity and timer)

Date and Time: Yes

GPS: Internal GPS:

o Horizontal position accuracy of 2.5m

Internal Temperature Sensor: +/- 2˚C

Wireless Radio:

- 2.4GHz Wireless connection to a Communicator II handheld

- Internal antenna with an outdoor range of 600ft line of sight and 300ft typical indoor range dependent on environment.

Calibration Reminder: Yes

AZT (Automatic Zero Tracking) & Filtering: Configurable AZT and Filtering

RS-232 Port:

- Four pin Lemo RS-232 Output

- RS232 to USB Cable Kit available P/N AWT05509542

Carry Case: Yes

Enclosure: Suitable for continuous outdoor use

Units of Measure: lbf, kgf, nf Temperature

Range: -4˚F to 158˚F (-20˚C to 70˚C)

Power: Two C Alkaline batteries

Battery Life: Over 40 hrs continuous*

Accuracy: 3% full scale

User’s Manual: Yes, available for download on Dillon website

Pass/Fail Testing Mode: Yes

Tower Mode: Works with Tower Lookup PC Software to:

o Import and Send Tower Target Tensions to the Quick Check

o Set Wire Target Tension based on Temperature

o Store Pre-Tension & Post-Tension readings for each Leg and Wire with GPS coordinates
