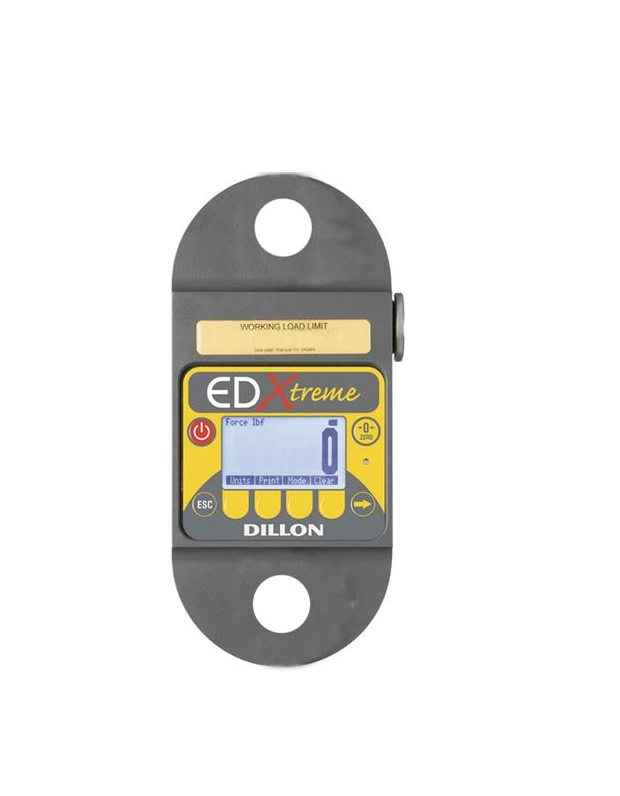

DILLON EDX-25T EDxtreme Dynamometer (250,000 x 200 N, radio-ready with spacer kit)

Capacity x Resolution (Normal Mode): 250,000 x 200 N

Capacity x Resolution (Enhanced Mode): 250,000 x 50 N

Overload: 500%

Enclosure: Designed to NEMA4X/IP55. Suitable for continuous outdoor use

Accuracy: 0.1% of capacity

Repeatability: 0.1% of capacity

Safe Overload: 200% of capacity

Body Protection: Aluminum and alloy steel capacities are powder coated.

Display: 128 x 64 dot-graphic LCD display shows up to 6 digits 1.0” (26 mm) high plus annunciators and softkeys. Digits are .11 inches (3 mm) thick for unmatched readability.

Display Update Rate: 2 times per second.

Peak Capture Rate: 10/100/1,000 Hz

Connector: Recessed sealed connector may be used for serial communications or connection to a Communicator II remote.

RS-232 Communication: Print or extract data easily. Continuous output can drive a scoreboard. Configurable poll character.

Battery Life: Stand alone EDXtreme with no radio and no backlight lasts up to 400+ hours. 150 hours continuous with Radio Link System. Use with two C-Cell alkaline batteries. (When using backlight, battery life will be reduced, depending on intensity.)

Operating Temperature: -4°F đến 158°F (-20°đến 70°C)

Included with Instrument: All include certificate of calibration, manual and batteries, plastic carry case included
