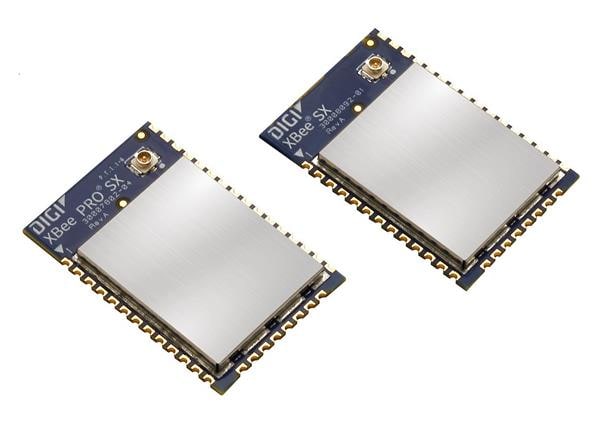

DIGI XB8X-DMRS-001 Zigbee Modules XBee SX 868, 25mW DigiMesh, RF Pad
ManufacturerDIGI(View more products from this manufacturer)
ModelXB8X-DMRS-001
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Frequency: 868 MHz
Dimensions: 1.33 in x 0.87 in x 0.12 in
Unit Weight: 18.664 g
Output Power: 13 dBm
Interface Type: SPI, UART
Moisture Sensitive: Yes
Protocol - Sub GHz: Low Power
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 2.4 V
Antenna Connector Type: Pad
Operating Supply Voltage: 2.4 V to 3.6 V
Supply Current Receiving: 40 mA
Supply Current Transmitting: 55 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - ANT, Thread, Zigbee - 802.15.4: Zigbee
