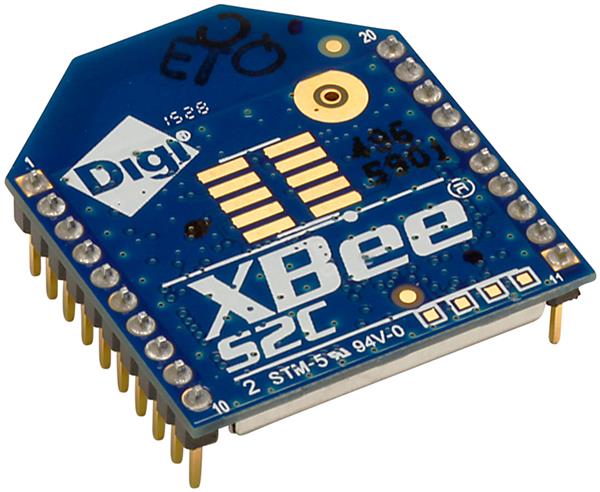

DIGI XB24CAPIT-001 Zigbee Modules XBee, S2C, 2.4GHz Through-hole,PCB ant
ManufacturerDIGI(View more products from this manufacturer)
ModelXB24CAPIT-001
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Range: 200 ft, 4000 ft
Data Rate: 250 kb/s
Frequency: 2.4 GHz
Dimensions: 2.761 cm x 2.438 cm
Sensitivity: - 100 dBm
Unit Weight: 16 g
Output Power: 3.1 mW
Interface Type: SPI, UART
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 2.1 V
Antenna Connector Type: PCB
Operating Supply Voltage: 2.1 V to 3.6 V
Supply Current Receiving: 28 mA
Supply Current Transmitting: 33 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4, Zigbee
