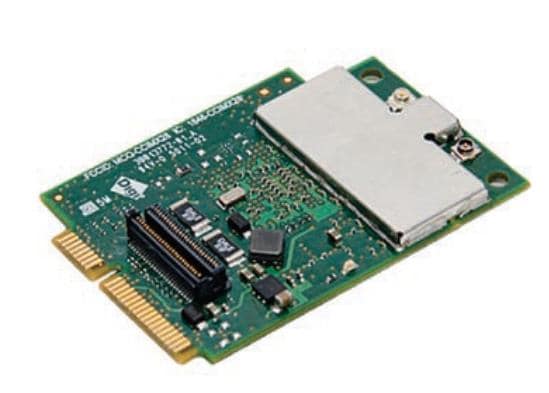

DIGI CC-MX-PF58-ZK System-On-Modules - SOM ConnectCard i.MX287 2xEthernet

Flash: 2 GB

Frequency: 454 MHz

Dimensions: 51 mm x 35 mm x 2.6 mm

Form Factor: Compact Form Factor

Memory Size: 256 MB

Memory Type: DDR2

Cache Memory: 16 kB, 32 kB

Installed RAM: 256 MB

Interface Type: Ethernet, GPIO, I2C, SPI, UART, USB

Processor Type: i.MX287

Processor Brand: NXP

Description/Function: An ideal embedded platform solution for connected applications in medical and healthcare, energy, transportation and industrial/building automation

Maximum RAM Capacity: 256 MB

On-Board Storage Size: 256 MB

On-Board Storage Type: Flash

Battery Backup Switching: No Backup Battery

Operating Supply Voltage: 5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
