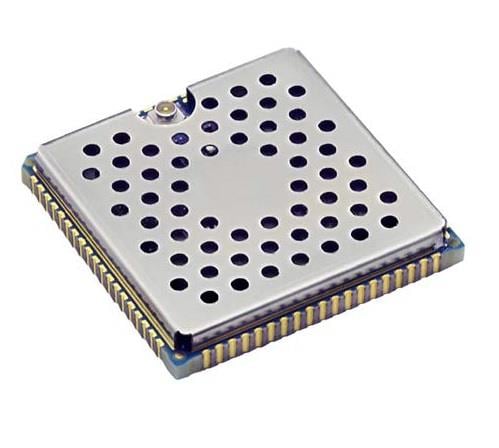

DIGI CC-MX-JN7A-Z1 System-On-Modules - SOM i.MX6UL-2 1GB Dual 10/100 ethernet

Flash: 1 GB

Frequency: 528 MHz

Dimensions: 29 mm x 29 mm x 3.5 mm

Form Factor: Digi SMTplus

Memory Size: 1 GB

Memory Type: DDR3

Cache Memory: 32 kB, 128 kB

Installed RAM: 1 GB

Interface Type: Ethernet, FlexCAN, I2C, I2S/SAI, SDIO, S/PDIF, SPI, UART, USB 2.0 OTG

Processor Type: i.MX 6UltraLite-2

Processor Brand: NXP

Moisture Sensitive: Yes

Description/Function: Secure ethernet module

Maximum RAM Capacity: 1 GB

On-Board Storage Size: 1 GB

On-Board Storage Type: Flash

Operating Supply Voltage: 5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
