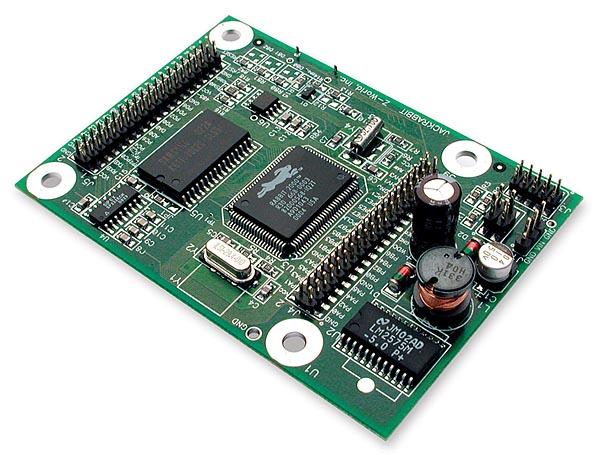

DIGI 20-101-0356 Single Board Computers BL1800

Core: Rabbit 2000

Flash: 256 kB

Frequency: 29.5 MHz

Dimensions: 89 mm x 64 mm x 19 mm

Form Factor: Compact Form Factor

Memory Type: SRAM

Unit Weight: 80.342 g

Installed RAM: 0 GB

Interface Type: RS-232/485

Processor Type: Rabbit 2000

Number of Cores: 1 Core

Processor Brand: Rabbit Semiconductor

Power Consumption: 1.2 W

Description/Function: C-Programmable single board computer

Maximum RAM Capacity: 0 GB

Battery Backup Switching: Backup Battery

Operating Supply Voltage: 12 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
