Dickson TOUCHSCREEN-BUNDLE DicksonOne Touchscreen

Alarm Type: Audible/Visual (Phone, Text, and Email Alarms via DicksonOne Subscription)

Ambient Operating RH Conditions: 0 to 95% RH non-condensing (Logger Only)

Ambient Operating Temperature Conditions: TWE: 32.0° to 158.0° F (0.0 to 70.0° C); TWP: 32.0 to 140.0° F (0.0 to 60.0° C)

Antenna Type: Internal

Backup Battery: 70 Hours

Battery Type: Rechargeable Backup Battery

Cable Details: Up to 5 Probe Extensions (A898) can be used (50ft Total)

Calibration Options: N100, N300, N400, N995

Data Capacity: Approx 1,000,000 sample points (backup)

Dimensions: 8.5 x 1.75 x 7.0" (21.0 x 4.5 x 18.0cm)

Display Dimensions: 8" Diagonal

Display Type: LCD Touchscreen

Display Update Rate: Sample Interval Dependent (User Selectable)

Download Type: WiFi/Ethernet (DicksonOne Cloud), USB (must be formatted at FAT32)

Enclosure: Case Front: Polycarbonate; Case Back and Pods; ABS

Included Accessories: AC Adapter, Mounting Bracket and Kickstand

POE: Input Current PeakTWP: (At 48V) 235mA

POE: Input Voltage Range: TWP: 36.0 to 57.0V

Mounting Options: Mounting Bracket (Included with Touchscreen)

PC RequirementsWindows 7 or more recent

Power Consumption: TWP: Up to 9W

Power Cord: 6 ft

Power Source: 100-240 VAC 50/60Hz 12V=1A

Required Software: DicksonOne SaaS Package, DicksonWare VERSION TBD

Resolution: LCD TBD

Sample Interval: User Selectable Sample Intervals: 60, 90 seconds / 2, 5, 10, 15, 30, 60 minutes. (10 and 30 seconds optional, please call for details)

Sensor Type: Replaceable Sensor (See Accessories for more information)

Unit Weight: 1.45lbs

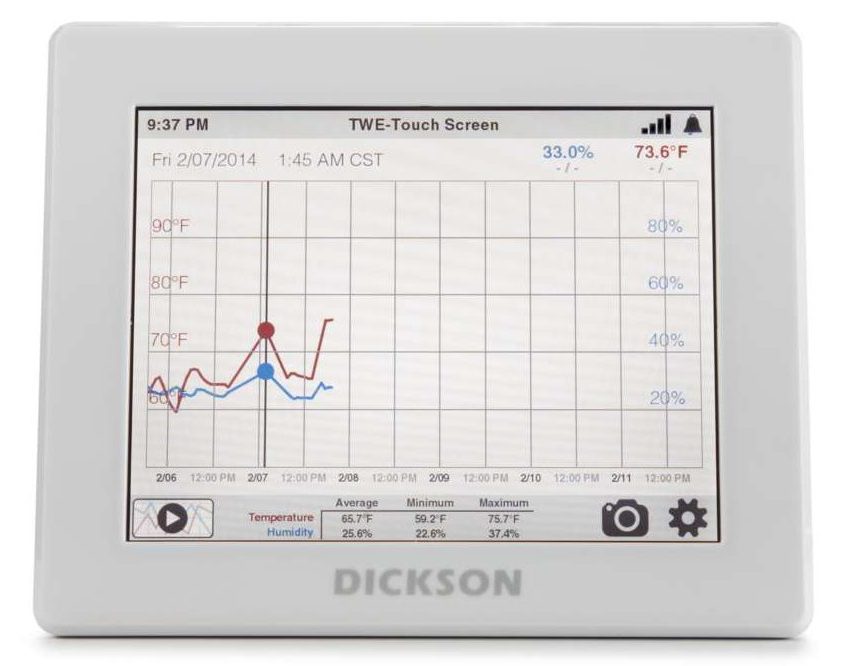

DicksonOne is a cloud based environmental monitoring system for monitoring your critical variables. Plus, with multiple alarm notification methods, you can ensure the right people are up-to-date on any excursion with time to act before something spoils. Our capacitive 8″ touchscreen offers our best user experience ever and now features customizable views, alarms, and more.

• Intuitive user-interface makes it easy to view and manage your data

• Automatically calculates and updates summary data for the selected time range

• Includes passcode protection for unit security
