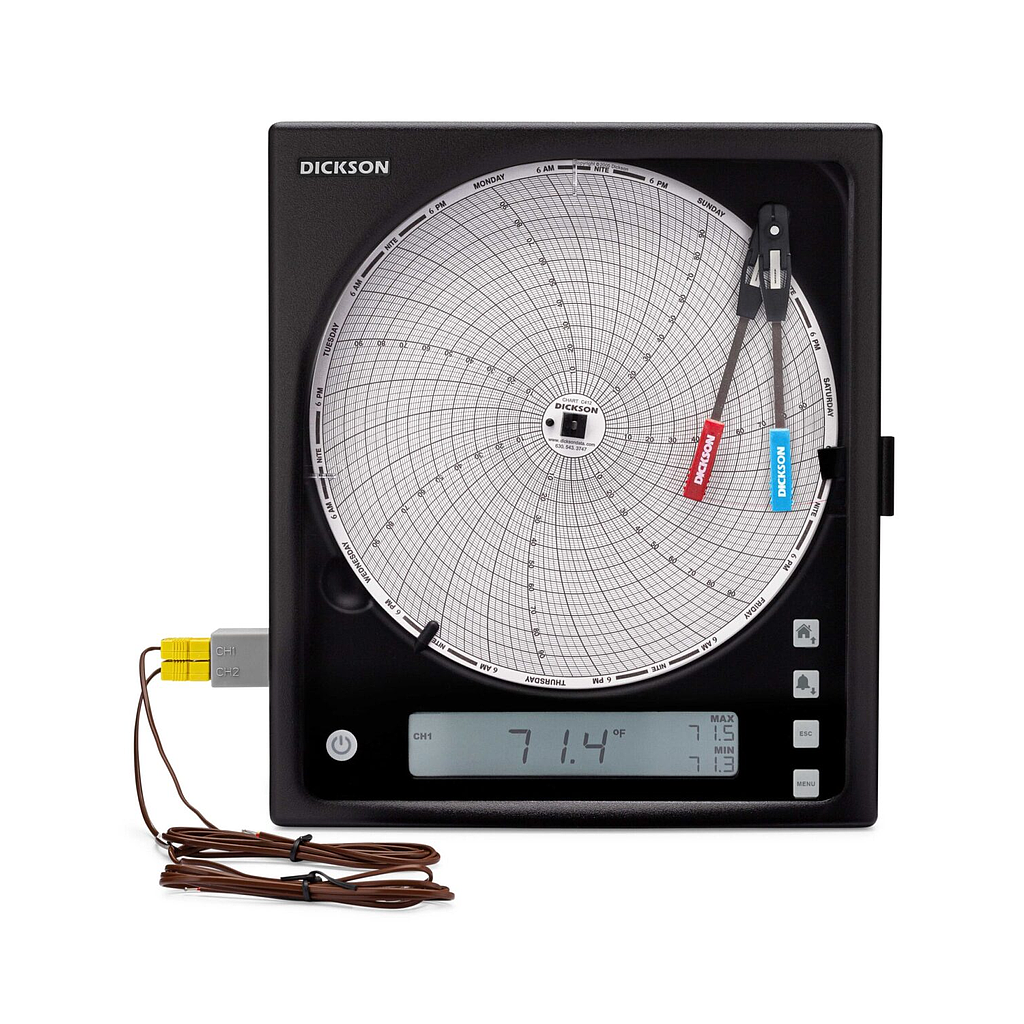

Dickson KT8-31R Temperature Chart Recorder (-300°F ~ 2000°F (-185°C ~ 1093°C))

Alarm Type: Audio/Visual

Ambient Operating RH Conditions: 0-95% RH non-condensing

Ambient Operating Temperature Conditions: 32°F to 120°F (0°C to 50°C)

Battery Backup: (4) C Batteries

Battery Life: 1 Month (Avg)

Calibration Options: N100, N300, N400

Channels: CH1: Temperature; CH2: Temperature

Chart Rotation Speed: 24 Hour, 7 Day

Dimensions L x W x H: 9 3/8”x2 3/4”x10 1/8”

Display Dimensions: 5 1/8” x 1”

Display Type: LCD

Enclosure: Rugged Black ABS Case, Polycarbonate Door, Aluminum Dial

IP Rating: IP20

Included Accessories: AC Adapter, Red Pen, Blue Pen, (4) C Batteries, Quick Start Guide and Replaceable Sensor™ *Charts sold separately

Mounting Options: Free Standing or Wall Mount (With Keyhole)

Power Cord: 6 ft

Power Source: 120 to 240 VAC, 12 VDC (INTL fittings available); AC Adapter

Power Status Indicator: LED Indicator

Unit Weight: 2.45lbs without batteries

Sensor Specifications:

Replaceable Sensor: Dual K-Thermocouple (RS031)

Temperature Accuracy

±1.8°F from -300°F to 122°F (±1°C from -185°C to 50°C)

±3.8°F (±2.1°C) remaining range

Temperature Range: -300°F to 2000°F (-185°C to 1093°C)
