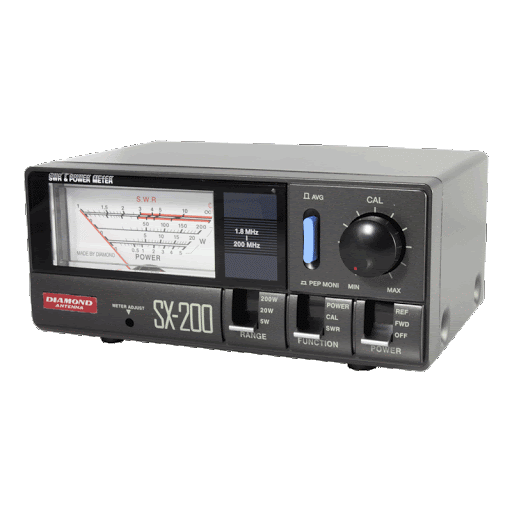

DIAMOND SX200 Power Meter
ManufacturerDIAMOND(View more products from this manufacturer)
ModelSX200
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Frequency: 1.8-200 MHz
Power display range: 5/20/200
Accuracy at fullscale: 5W Range ± 5% (F.S), 20W Range ± 7.5% (F.S), 200W Range ± 5% (F.S), (Add + 15% of full scale at 160 to 200MHz)
Connector: MJ
Minimum power at SWR measurement:1W
Insertion loss: Less than 0.15dB(1.8 to 3.5 MHz),Less than 0.2dB(150 to 200MHz) Measurement function:Forward RF power,Reflected RF power,SWR,PEP monitor
Dimension: 155Wx63Hx103D (mm)
Weight: 540g
