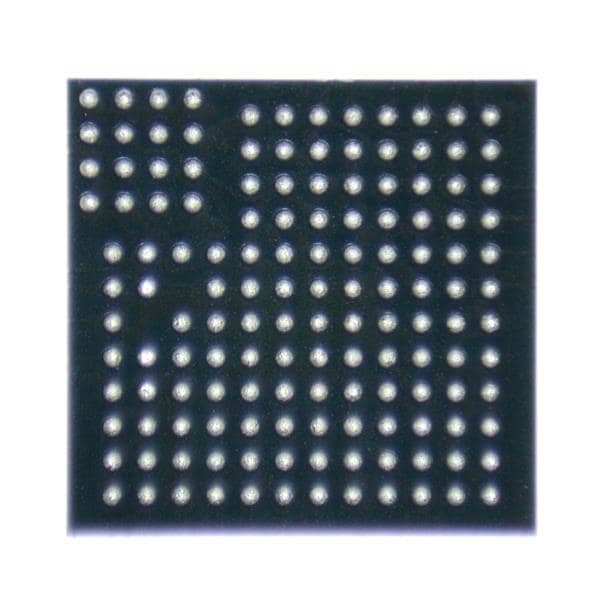

Dialog Semiconductor DA14706-00000HZ2 Bluetooth Multi-core wireless MCU for Bluetooth 5.2 and proprietary 2G4 protocols

Core: ARM Cortex M33

Technology: Si

Sensitivity: - 97 dBm

Output Power: 6 dBm

Data RAM Size: 1.5 MB

Mounting Style: SMD/SMT

Number of I/Os: 79 I/O

Maximum Data Rate: 6 Mbps

Moisture Sensitive: Yes

Operating Frequency: 2.4 GHz

Program Memory Size: 4 kB, 32 kB

Supply Voltage - Max: 4.75 V

Supply Voltage - Min: 2.9 V

Maximum Clock Frequency: 160 MHz, 2.4 GHz

Supply Current Receiving: 1.85 mA

Supply Current Transmitting: 3 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
