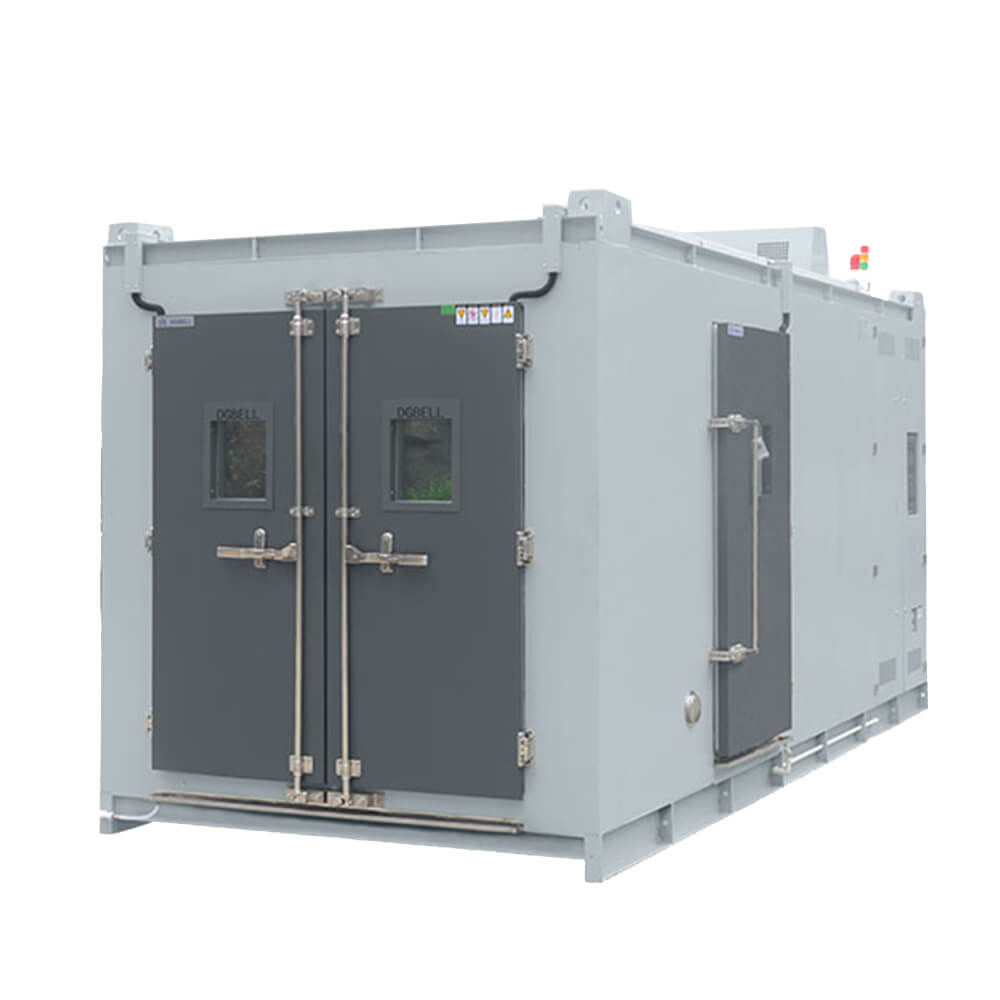

DGBell BTKS5-12m³-C Walk in Chamber for Rapid Rate Temperature / Humidity Test (-50 ℃ ~ + 150 ℃, -50 ℃ ~ + 150 ℃)

Internal Dimension: W2000 X D3000 X H2000mm

External Dimension: W2400 X D4500 X H2940mm

Temperature Range:-50℃ ~ +150℃ (Adjustable)

Humidity Range:20%RH-98%RH

Temperature Fluctuation:±0.5℃

Humidity Fluctuation:±2.0％RH

Temperature Deviation:2.0℃

Humidity Deviation(A) >75%RH: ≤+2, -3%RH, (B) <75%RH: ≤±5%RH.

Heating Rate:≧5℃/min (From -40℃ up to +80℃, Non-linear load 800kg)

Cooling Rate:≧5℃/min (From -40℃ up to +80℃, Non-linear load 800kg)

Temperature overshoot:≤±2℃

Weight Approx: 5 Tons

Power Supply:AC 380V, 50HZ, 127KW

Noise:≤70dB (A-Level)

External Material:Galvanized sheet with high temperature electrostatic resin coating at both sides.

Internal Material:1.2 mm thickness SUS# 304 heat and cold resistant stainless steel with seal welding.

Controller:24-bit high accuracy 7 inch TFT true colors LCD touch screen.

Compressor:Semi-Hermetic Compressors BOCK / BITZER (Germany)

Cooling Type: Air cooling or water cooling (Optional)

Other Requiremen: Main-subsidiary type trolley for the specimen in and out of the test chamber.

Explosion-proof lighting system.

Explosion-proof pressure relief system.

Smoke exhaust system.

Automatic Water Supply System.

Fire extinguishing device; spray device; smoke alarm device.
