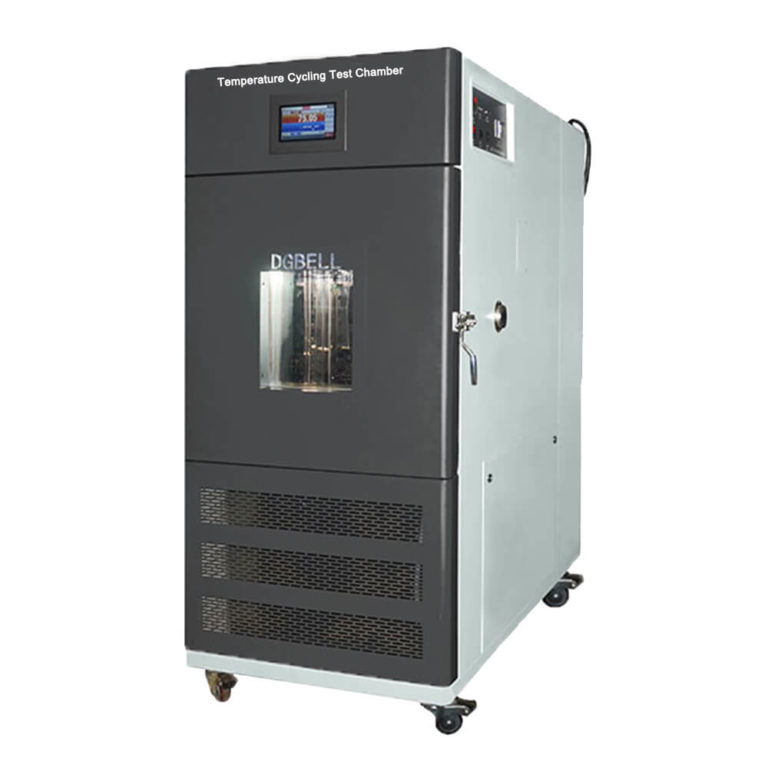

DGBell BTKS5-1000C Temperature Cycling Test Chamber (32KW, -70 ℃ ~ + 150 ℃)

Testing Space: 1000x1000x1000

External Dimension: W750xH1780xD1500mm

Cooling Mode: Water-cooled

Power Source:32KW

Temperature Range: -70℃~+150℃（Adjustable）

Humidity Range: 20%RH-98%RH (details see temperature humidity control diagram).

Temperature Fluctuation: ±0.5℃

Humidity Fluctuation: ±2％RH

Temperature Deviation: ≤2.0℃

Humidity Deviation: A)>75%RH:≤+2,-3%RH，B)<75%RH:≤±5%RH。

Temperature Uniformity: ≤±2.0℃

Humidity Uniformity: +2,-3%RH

Heating Rate: From -40℃ to 85℃，full range non-linear average about5℃/mins，no load

Cooling rate: From 80℃to -40℃ ,full range non-linear average about5℃/mins，no load

Temperature Overshoot: ≤±2℃

Internal Material: 1.2mm thick SUS#304 temperature resistance stainless steel.

External Material: Galvanized plate with Double-sided electrostatic powder coating.

Control Mode: Touch screen programmable PLC, with USB interface, with RJ485 interface can be connected to computer controlling, special network control software, convenient remote monitoring, data acquisitioning.

Compressor: Tecumseh (France)-fully air-cooled double-fall cooling compressor. Or Bock (Germany) semi-enclosed air-cooled refrigeration.

Safety Protection: Explosion-proof pressure relief device, explosion-proof chain, mobile phone alarm device, networking, smoke exhaust device, fire extinguishing device, etc.
