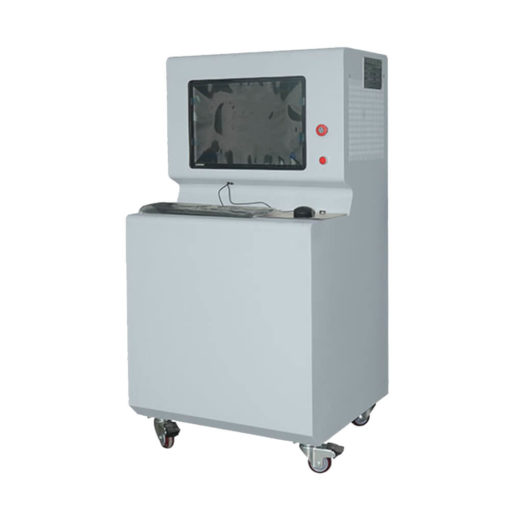

DGBell BE-8401 Thermal Runaway Test Machine (3KW, AC 220V 50Hz)
Trigger Mode:Overcharging and heating (Optional)
Heating Mode Channel:2 channel(1 in common used, 1 for spare)
Max. Heating Power:3KW, Single channel
Power Adjust Mode:Changed the heating tube with different capacity + Adjust the input current.
Power Supply:AC 220V 50Hz
Max. Overcharging Voltage:10V and 100V
Voltage Acquisition Channel:2 channel (Customizable)
Temp. Acquisition Channel:4 channel (Customizable)
Control Mode:PLC+PC control (PC and main chamber integrated)
Control Host Overall Dimension:W700 X D650 X H1360mm
Explosion-proof Chamber Dimension:W2000xD3000xH2000mm (Optional)
Total Weight:1000KG
Power Supply:AC 220V , 7.0KW
