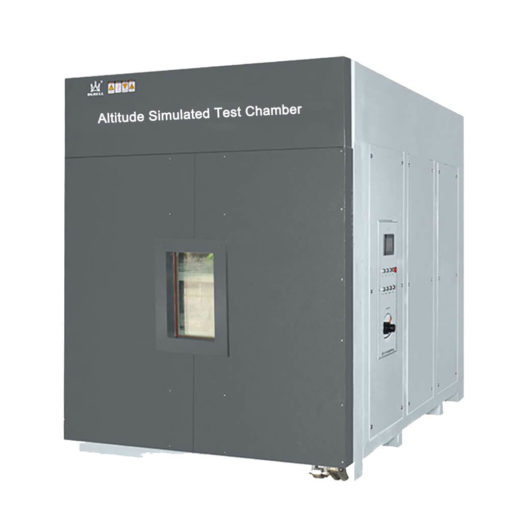

DGBell BE-8203-5m³ Walk in Chamber for Altitude Simulated Test (10.0KPa—101.3KPa)

Internal Dimension:W1600 X D2400 X H1300mm

External Dimension:W2050 X D2700 X H2200mm

Equipment weight:Approx 6 ton

Power Supply:AC 380V,6.0KW

Pressure Range:10.0KPa—101.3KPa (Adjustable)

Pressure Reducing Time:Less than 30 min

Pressure Recovery Time:Less than 30 min

Pressure Maintenance:≧10 hours

High Tension Terminal:4 pieces, Max. DC 500A,1000V

Low Tension Terminal:4 pieces, Max. DC 500A,1000V

Data Cable Interface:2 groups, DB9 line

Observe Window:W400 X H600 mm

Auto Door:Adopt hydraulic automatic open design

Inner Material:SUS304# stainless steel+45# steel

External Material:SECC steel plate，powder painted

Power Supply:AC 380V,6.0KW

Other Requirement:PLC touch screen control + computer remote control.

Can be charged and discharge in vacuum condition.

The inner chamber has signal wire interface.

Lighting system and video monitor system

Slide rail installed, the test object can be carried into and out automatically.
