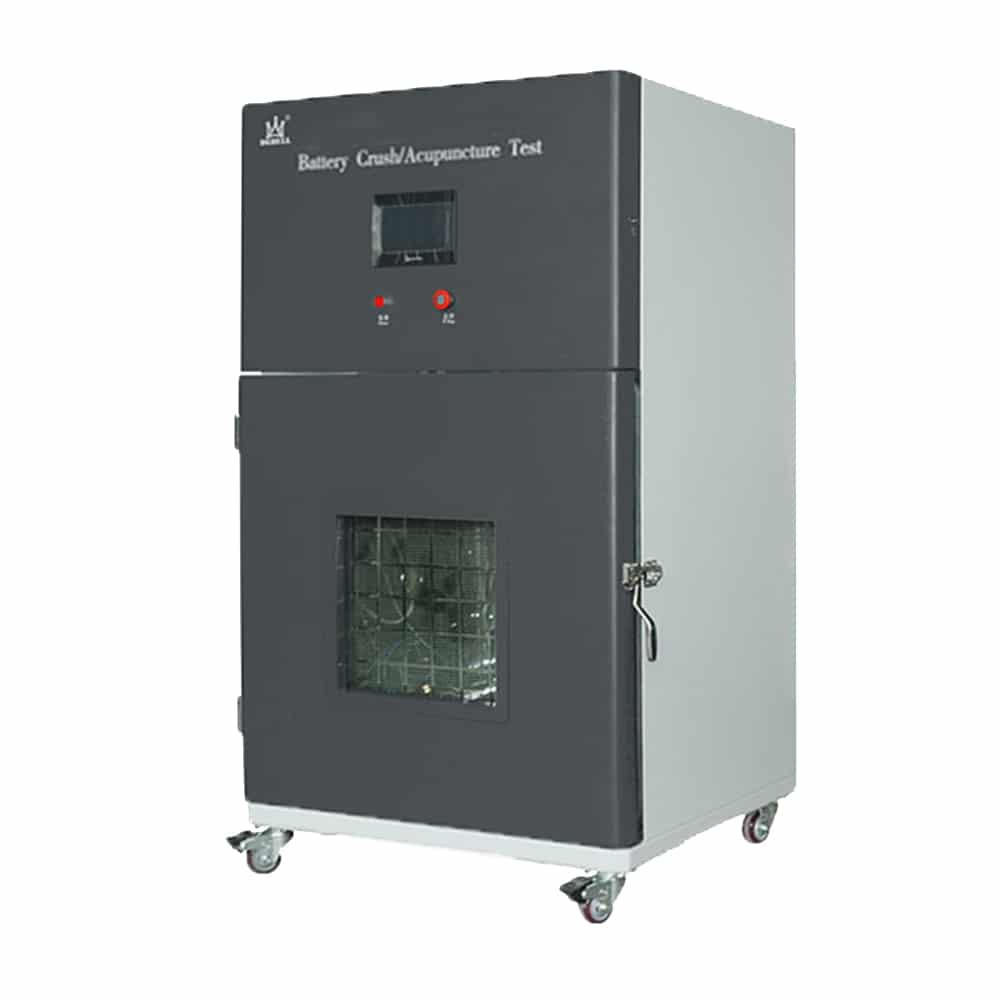

DGBell BE-8111 Battery Crush Nail Penetration Test Chamber (2KN ~ 20KN)

Structure: One machine structure, the door uses explosion-proof lock and explosion-proof chain

Max.pressure: 2KN~20KN(Adjustable, customized according to requirements)

Piston diameter: 32mm

Driving method: Hydraulic pressure

Unit conversion: kg/N/Lb

Crush/Nail penetration range: 0~200mm

Crush accuracy: ±1%

Nail penetration test speed: 0-40mm/s(adjsutbale)

Crush hold time: 0~99h 99m 99s

Control method: PLC touch screen control system(7-inch touch screen)+remote control

Testing space: W500×D300×H300 mm

Dimension: W940×D780×H1620 mm

Viewing Window: 390×360m(20mm thick explosion-proof galss +explosion proof stainless steel mesh)

Power Supply: AC 380V / 50HZ / 3.0KW

USB Interface: With USB interface, test data can be output

Safety Protection: Explosion-proof pressure relief device, smoke exhaust device, explosion-proof chain

Options: Video monitoring system, temperature, voltage acquisition system
