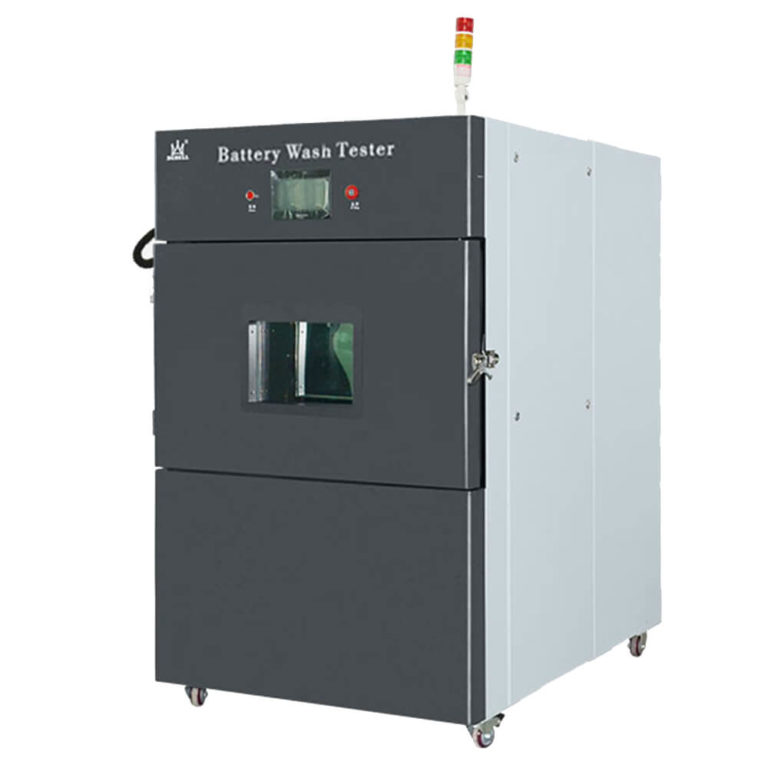

DGBell BE-8109 Battery Washing Test Chamber (+ 10 ℃ ~ 80 ℃)

Instruction: All-in-one structure, install explosion-proof lock + explosion-proof door

Testing Rotary Plate Diameter: 500±10MM

Inner Barrel Diameter: 650MM

Inner Barrel Depth: 550MM

Plate Rotation Speed Range: 1—900rpm/min controllable

Speed Accuracy: 0.01

Control System: PLC touch control + Remote control

Control Method: Programmable, fully automatic testing.Returning to origin – adding water – raising – heating – dropping – soaking – stirring – draining – dewatering – de-cylindering – drying – complete.

Servo Motor: Japan Panasonic servo motor

Time Setting: 0-999 hours (Adjustable)

Liquid Temperature Range: RT+10℃ ~ 80℃（controllable)

Water Temperature Deviation: ±2℃

Water Temperature Accuracy: 0.1℃

Water Temperature Heating Rate: RT ~ 45℃ ,Less than 40min

Drying Temperature Range: RT+10℃ ~ 80℃（controllable)

Wind Temperature Deviation: ±2℃

Wind Temperature Display Accuracy: 0.1℃

Wind Temperature Heating Rate: RT ~ 45℃ ,Less than 40min

Water Control Method: Automatic water pump

Heating Control System: Heating tube: water temperature control heating and thermostat control heating control separately

Transmission System: Driven by motor, screw drive control lift

Alarm Device: Tri-color warning light

Observation Window: 370X350MM,Three-layers vacuum tempered glass

Internal Material: SUS 316# ,Stainless steel

External Material: 1.5mm thickness Cold plate paint baked coating

Power Supply: AC 380V /14.0KW

Total Dimension: W1150 X H1780 X D1550 MM

USB Interface: With USB interface, test data can be output
