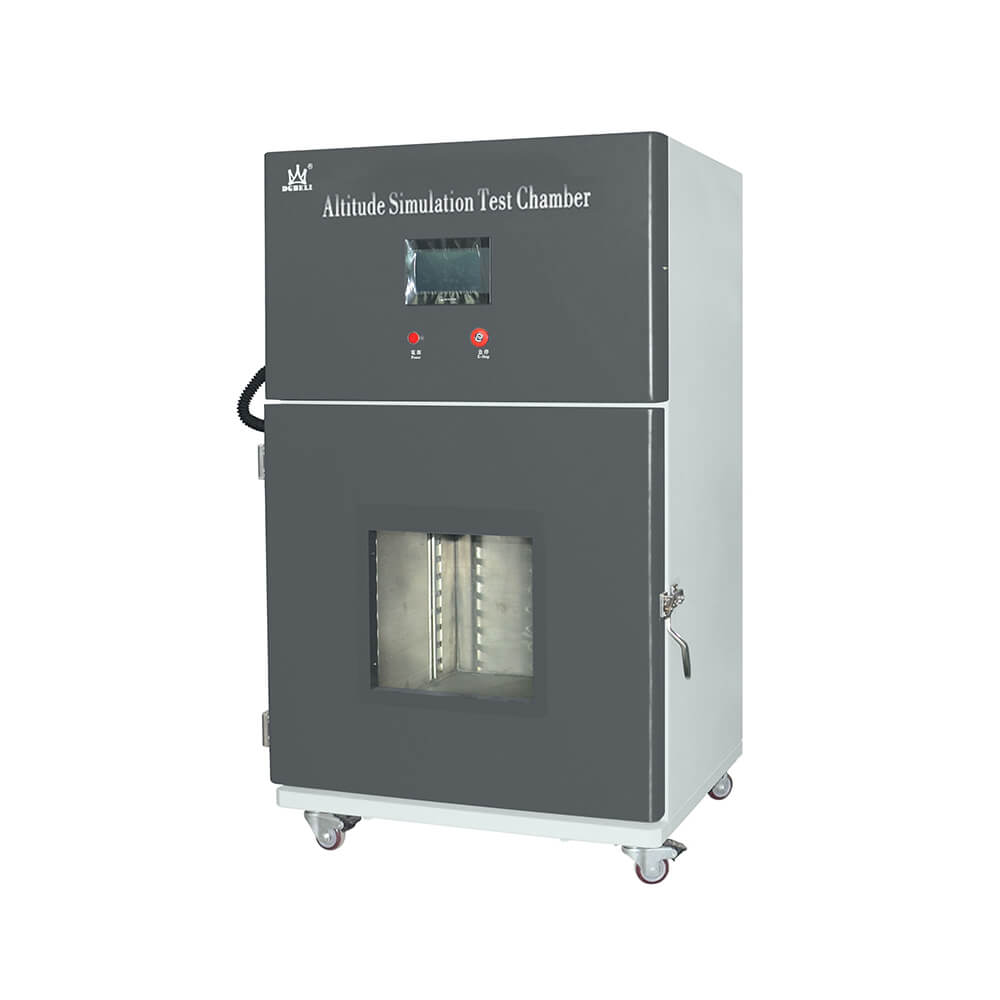

DGBell BE-8104 Altitude Simulation Test Chamber (AC 220V / 50HZ / 1KW, 5Kpa)

Structure: All-in-one structure, door with explosion-proof lock and explosion-proof chain

Temperature Range: Room temperature

Display Mode: PLC touch screen display (7-inch touch screen) + remote control

Unit: Kpa

Internal Chamber Dimension: W600xD600xH600 mm

External Chamber Dimension: W940xD780xH1620 mm

Internal Chamber Material: Reinforced steel + stainless steel (thickness 6.0mm)

External Chamber Material: SECC steel plate, Fine powder paint coating (thickness 1.5mm)

Timing Range: 99H 59M 59S

Observation Window: 390 X 360mm(20mm thick tempered glass with explosion-proof film)

Air Pressure: Normal pressure ~5Kpa (Adjustable)

Controlling Mode: PLC touch screen display + remote control

Power Supply: AC 220V / 50HZ / 1KW

USB Interface: With USB interface, the test data can be output

Options: Video surveillance system, terminal device
