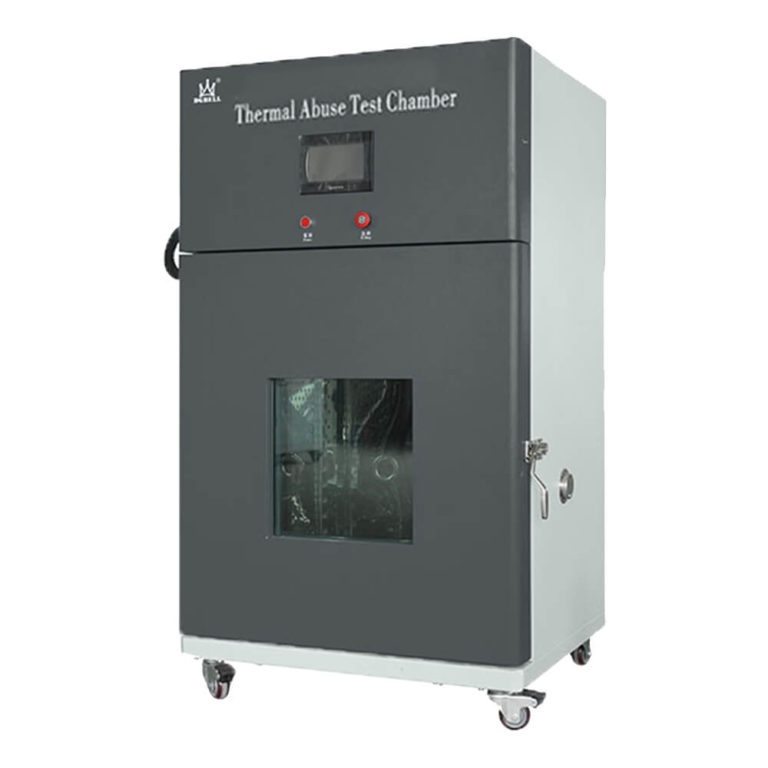

DGBell BE-8103 Thermal Abuse Test Chamber (Test Cells) (150 ° C, RT ～ 150 ° C)

Structure: All-in-one structure, the door uses explosion-proof lock + explosion-proof chain

Normal temperature to 150°C (Adjustable)

Temperature Range

Controlling Accuracy: ±0.5℃

Temperature Deviation: ±2.0℃, No load

Heating Rate: RT～150°C (Linear 5°C/min)

Control Display: PLC touch type (7 inch) + remote control

Working Cabinet Dimension: W600XD500XH600 mm

External Dimension: W940XD780XH1620 mm

Inner Chamber Material: US304 Stainless steel with mirror-finish

External Chamber Material: SECC steel plate, fine powder paint coating (thickness 1.5mm)

Bottom: With universal wheel

Observation Window: 390 X 360mm (20mm thick explosion-proof glass, explosion-proof mesh)

Insulation Material: Imported high-density glass wool, good heat insulation, to ensure maximum temperature insulation, tight sealing materials for high temperature resistant silicone, withstanding high temperatures over 300 degrees for a long time

Terminal Hole: Diameter 50mm Terminal hole on the left and right sides

Power Supply: 220V / 50HZ / 4.0KW

USB Interface: With USB interface, the test data can be exported
