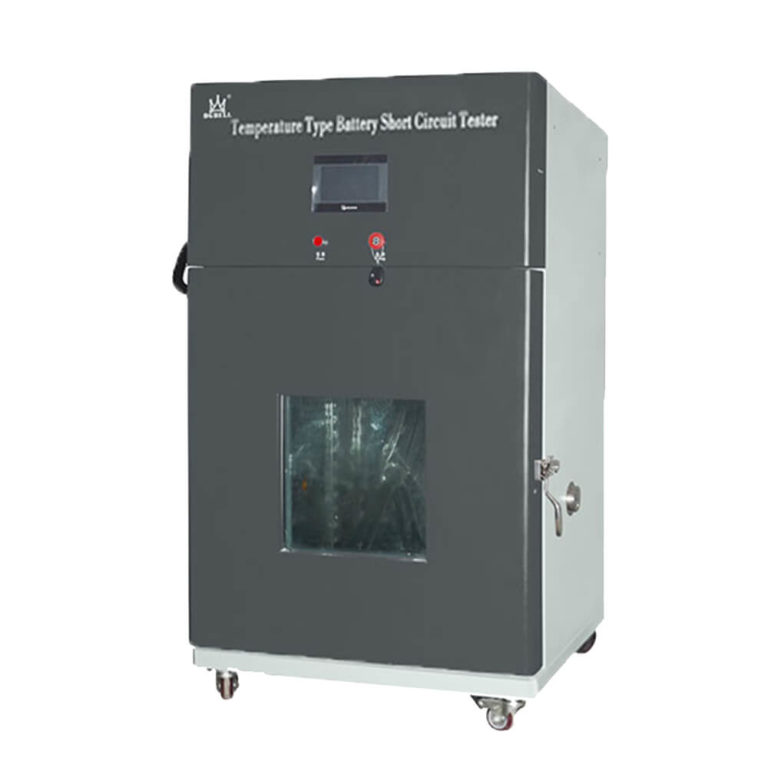

DGBell BE-8102 Temperature Control Battery Short Circuit Test Chamber (1000A, 80 ± 20 mΩ)

Structure: All-in-one structure, the door uses explosion-proof lock and explosion-proof chain

Max. short-circuit current: 1000A

Internal Resistance: 80±20 mΩ (Load-current 400A)

Remote Control Available Distance: 7 meters without solid barrier

Controlling Mode: PLC touch type (7 inch) + remote control

Mechanical Life: 300 thousand times

Electric Life: Resistive load 50,000 times

Temperature Range: Normal temperature to 80°C or 0-80°C (Optional)

Temperature Fluctuation: ±1℃

Temperature Deviation: ±2℃

Inner Chamber Dimension: W600 X D500 X H600mm

Inner Chamber Material: 1.0mm thickness 304# stainless steel

External Chamber Dimension: W940XD780XH1620 mm

External Chamber Material: Cold-rolled sheet paint with1.5mm thickness, total thickness together with inner chamber is 100mm)

Observation Window: 390 X 360mm (20mm thick explosion-proof tempered glass) and protective steel mesh

Power Supply: AC220V / 3.0KW

Data Output: Current and voltage temperature can be recorded with the interface display. The test data can be directly output by USB flash disk

Security System: Explosion-proof pressure relief device, smoke exhaust device, fire extinguishing system, electronic door lock system, safety stop switch

Options: Temperature acquisition, voltage acquisition system, video monitoring system
