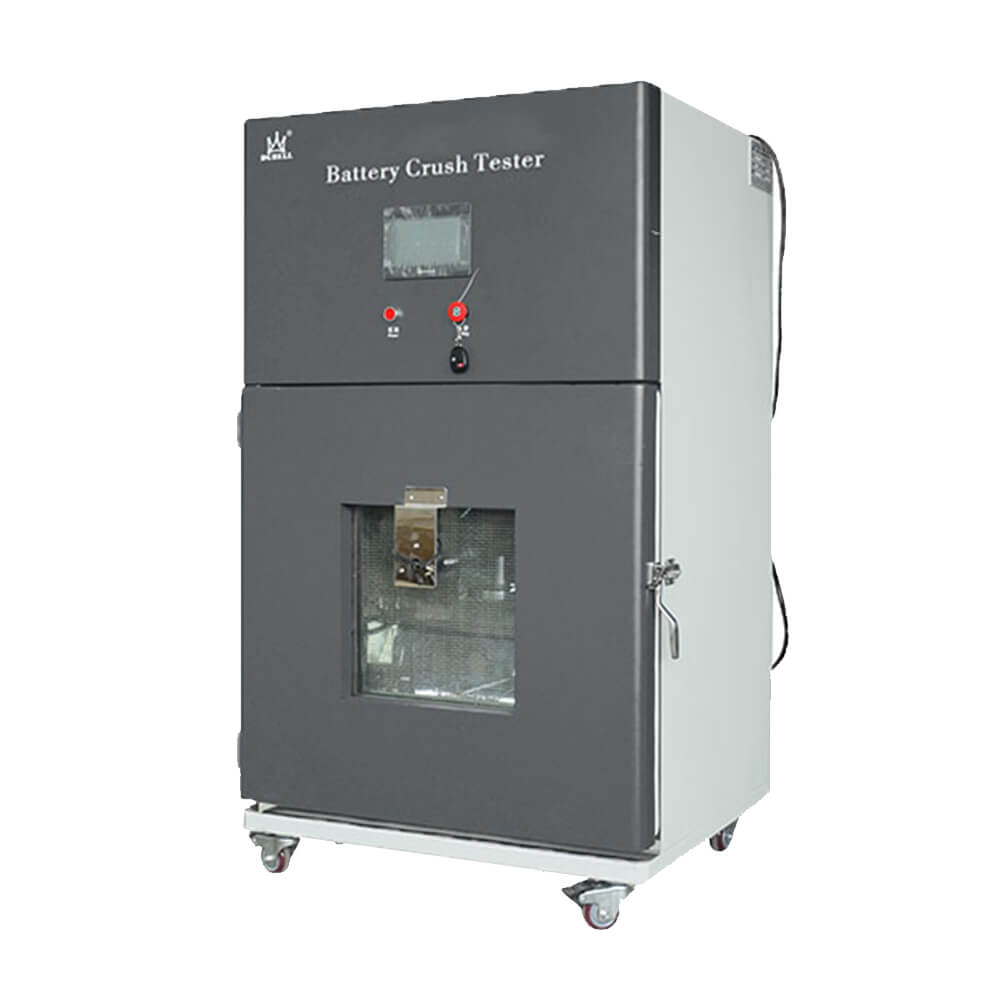

DGBell BE-8101 Battery Crush Test Chamber (1KN~20KN)

Max. Pressure: 1KN-20KN (Can be customized according to requirements)

Piston Diameter:32mm

Driving Mode: Hydraulic Press

Unit Conversion: Kg/N/Lb

Crush Range: 0~300MM

Extrusion Accuracy: ±1%

Extrusion Remaining Time: 0~99 hours 99 mins 99 secs

Controlling Mode: PLC touch screen control system (7-inch touch screen) + remote control

Testing Space: W500xD300xH300 mm

Overall Dimension: W940xD780xH1620 mm

Observation Window: 390 X 360mm (20mm thick tempered glass with explosion-proof grid)

Power Supply: AC 380V / 50HZ / 2.0KW

USB Interface: With USB interface, the test data can be output

Auxiliary Function: Explosion-proof pressure relief device, Smoke exhaust device, Explosion-proof chain

Options: Video monitoring system, Temperature, Voltage acquisition system, Fire extinguishing system
