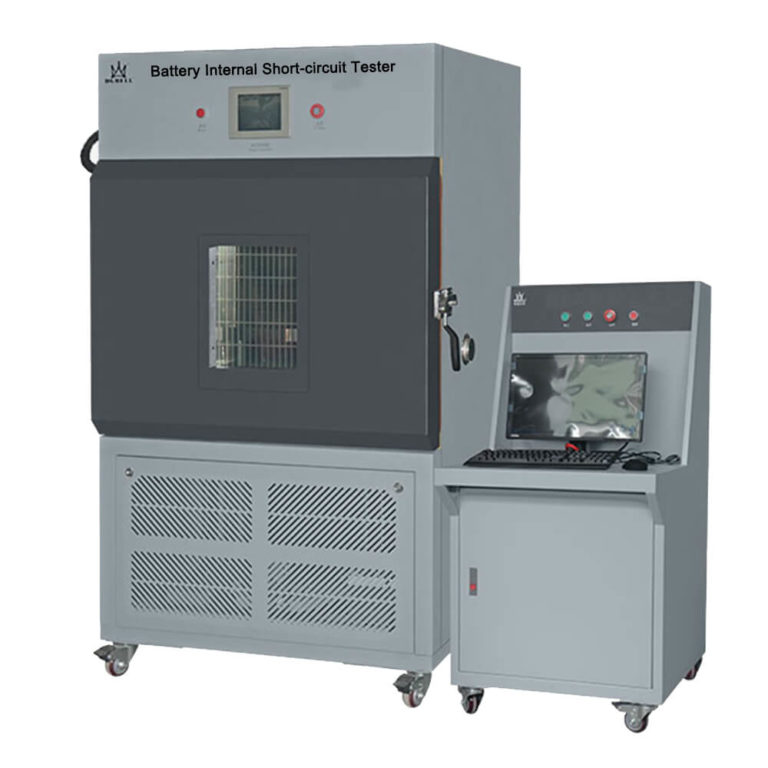

DGBell BE-6045W Battery Internal Short Circuit Test Chamber (-10 ℃～+ 80 ℃, 200KG)

Temperature Chamber Technical Parameters:

Temperature Range: -10℃ ～ +80℃（Controllable）

Temperature Rising Rate: Ave.3℃/min（-10℃ to 80℃、Nonlinear No-load）

Temperature Cooling Rate: Ave.1℃/min（80℃ to 10℃、Nonlinear No-load）

Inner Chamber Dimension: W600 X H750 X D500 MM

External Chamber Dimension: W1170 X H1850 X D1020MM

Inner Chamber Material:Stainless steel with mirror-finish, bottom reinforcement

External Chamber Material: Cold-Rolled Steel with paint-baked coating

Observation Window: The single-opening door is accompanied by a 3-layer vacuum large glass observation window (W430mm x H 580mm); The door frame is equipped with electric heating (automatic adjustment) anti-frost, anti-condensation device; so that you can clearly observe the Test status of the test sample in the box through the observation window at any time.

Internal Short Circuit Technical Parameters

Max. Loading: 200KG

Resolution: 1/10000

Force Accuracy: ≤0.5％

Displacement resolution: 1/1000

Accuracy of displacement: ≤0.5％

Speed Range: 0.01－5MM/S

Effective Range: 0 ~ 200mm

Max. Test Area:300X300MM (Can be customized)

Voltage Range: 0—60V

Voltage Resolution: 5mV

Voltage Acquisition Frequency: 100HZ

Control System:Servo motor + Servo control system

Safety Protection: Explosion-proof pressure relief device, smoke exhaust device, fire extinguishing system, electronic door lock system, safety stop switch
