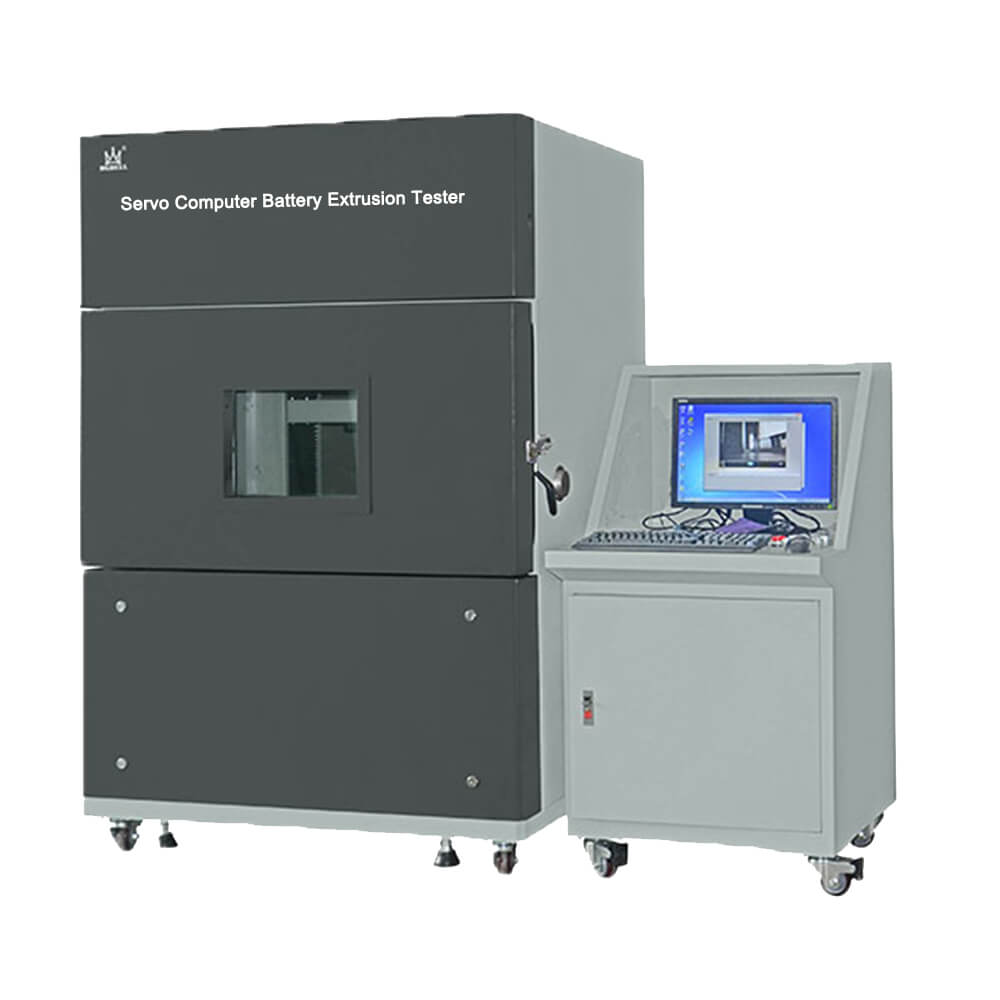

DGBell BE-6045D-2T Servo Computer Battery Crush Test Chamber (0-20KN, 0 ~ 300MM)

Pressure Range: 0-20KN

Crush Speed: The crush speed is adjustable. The speed of the first contact point during extrusion can be set to 1.5cm/s; the speed range of the test process is 0.01~900mm/min / 0.01~1.5cm/sec (Adjustable)

Driving Method: Electric Servo Drive

Unit Conversion: Kg/N/Lb

Crush Range: 0~300MM

Extrusion Accuracy: ±0.5%

Extrusion Remaining Time: 0~99 hours 99 mins 99 secs

Controlling Mode: Split type, computer control

Main Voltage: 1 channel (control via software interface)

Test Space: ≥ W300*D300*H300mm

Overall Dimension: W1200 X D1100 X H1800 mm

Observation window: Laminated 300*300mm explosion-proof glass with explosion-proof membrane

Power Supply: AC 220V 50HZ

The main control software can simultaneously collect the force, displacement and voltage changes in the extrusion process and make corresponding program control according to the test standard requirements.

Testing Conditions

Communication: Using R232, 485 communication interface, ensure the stability and real-time of remote collection, with explosion-proof function

Voltage Acquisition System (Optional):

Resolution: 5mv

Acquisition range: 0-60V

Acquisition channels: 2 (multiple channels can be customized as required)

Temperature Acquisition System (Optional):

Resolution: 0.1°C

Acquisition range: 0-1200°C

Acquisition channels: 2 (multiple channels can be customized as required)

Safety Protection Device: Automatic explosion-proof pressure relief device, smoke exhaust device, fire extinguishing device, video monitoring system, electronic door lock system, safety stop switch
