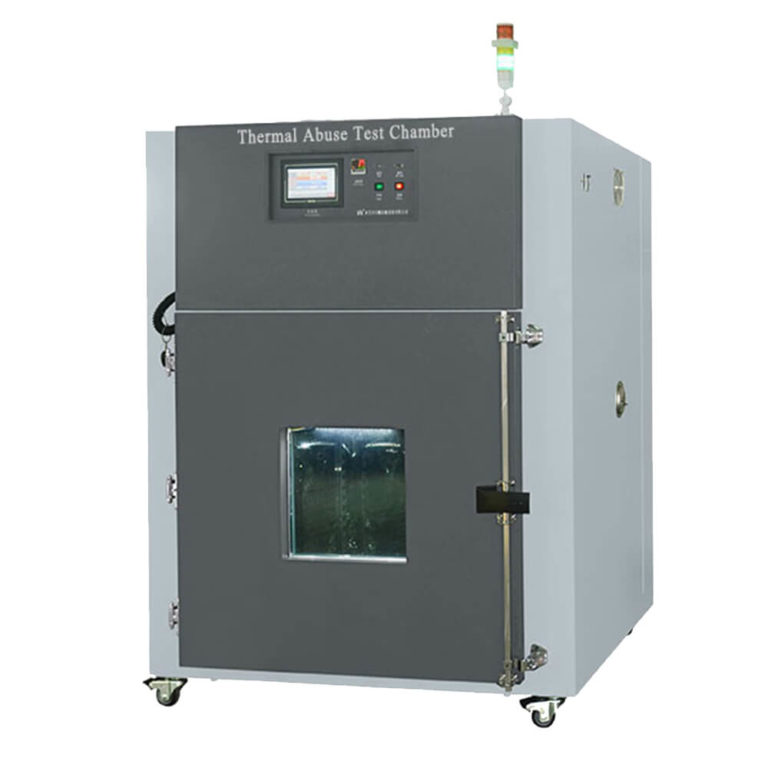

DGBell BE-101-1000A Thermal Abuse Test Chamber – Test Battery Module (- 200 ℃ , 380V 50HZ)

Temp. Range: Ambient – 200℃ (Controllable)

Control Accuracy: ±0.5℃

Temp. Uniformity: ±2.0℃( No load)

Temp. Rising Speed: RT – 150℃ (≧5℃/min, liner with load 40kg module)

Temp. overshoot: ≦2.0℃

Control Display Method:

PLC Touch screen + remote control, networking,

Cell phone APP alarm device, with USB interface, R485 interface can be connected to computer control.

Testing Room Dimension: W1000 X D1000 X H1000 mm

External Chamber Dimension: W1400 X D1300 X H1840 mm

Inner chamber Material: SUS304 Stainless Steel (Mirror finished)

External chamber Material: SECC Steel Plate, Powder Painted

Basement: With universal wheel

Observation Window:390 X 360mm (20mm Tempered Explosion Proof Glass)

Power Source: 380V 50HZ

Heating Power: About 12 KW

Safety Protection Device:

over-voltage, over-temperature, over-current protection.

protection for short circuits caused by incorrect operation of the operator and battery electrode, battery positive and negative connection, etc.

Safety Device: Smoke exhaust system, explosion-proof pressure relief port, tri-color light alarm.
