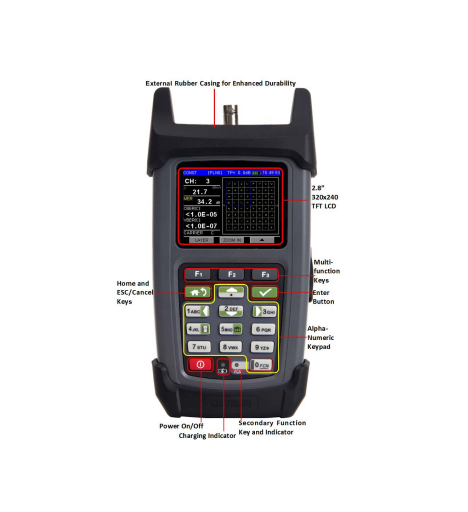

Deviser DS2460T ISDB-TB Analysis Meter (5MHz ~ 1220MHz)

Normal Spectrum Analysis

Frequency Range: 45 MHz ~ 1052 MHz

Span: 2.5 MHz; 6.25 MHz; 12.5 MHz; 25 MHz; 62.5 MHz; Full Span

Fast Spectrum Analysis

Frequency Range: 5MHz ~ 1220MHz

Span: 12.5MHz, 25MHz, 62.5MHz, Full Span

Channel Scan

Number of Channels: 160 channels max

Scale: 1,2,5,10dB/div

Zoom: 1X,2X,3X,4X,5X five levels

Analog TV Measurement

Support Standard: PAL, NTSC and FM Radio (Single Frequency)

Level Measurement: Range: -30dBmV to +60dBmV; Accuracy: ±2dB; Resolution: 0.1dB

Frequency: Range: 5M-1052M ; Accuracy: ±50ppm; Resolution: 10KHz

Resolution Bandwidth: 280KHz

C/N: >50dB

HUM Measurement Range: 2% to 5%

ISDB-TB Measurement

Modulation Type: QPSK, 16 QAM, 64 QAM

Modulation Bandwidth: 6MHz

Power Level Range: -35dBmV ~ 50dBmV

Power Resolution: 0.1dB

Power Level Accuracy: ±2.0dB (C/N>20dB)

MER Measurement: > 40dB

MER Accuracy: ±2.0dB

CBER: 1E-1 ~ 1E-5

VBER: 1E-1~1E-7

Constellation: √

Line Voltage Measurement

Range: 0V to 100V (AC/DC) with accuracy ±2V

Others

RF Input: 75Ω

USB: USB Micro B 2.0

Ethernet: 10/100M

Display: 2.8” 320x240 TFT LCD

AC/DC Adapter: AC 100V to 240V 50-60Hz ,DC 15V/0.9A

Battery: 7.4V 2.5Ah Lithium Battery

Charge Time/ Working Time: 5 hours/>5hours

Dimension (W×H×L): 200mm × 106mm × 54mm

Weight :About 600 grams

Work / Storage Temperature: -10 ~ +40°C/-20 ~ +70°C
