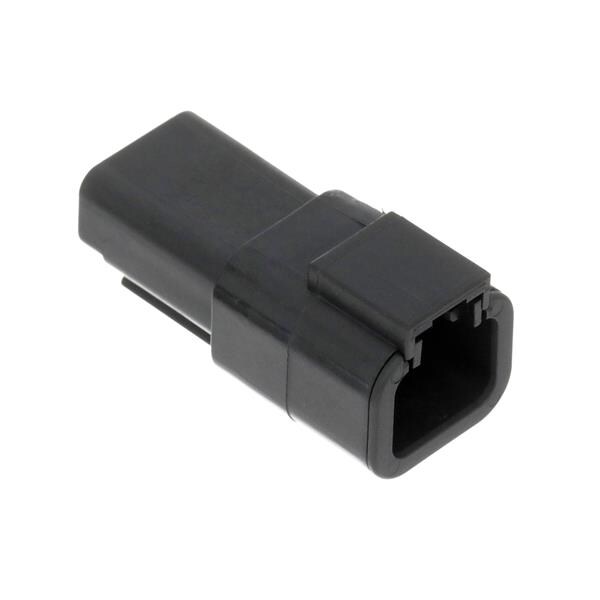

DEUTSCH - TE Connectivity DTP04-2P-E004 Connectors REC, 2P, BLK, N

Color: Black

Pitch: 6.71 mm (0.264 in)

Width: 22.15 mm

Gender: Receptacle (Female)

Height: 21.54 mm

Length: 47.27 mm

Material: Plastic

Dimensions: 22.15 mm x 21.54 mm x 47.27 mm

Application: Wire to Wire

Unit Weight: 10 g

REACH - SVHC: Details

Contact Gender: Without Pin Contacts

Current Rating: 25 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 1 Row

Voltage Rating: 200 V

Wire Gauge Max: 10 AWG

Wire Gauge Min: 14 AWG

Housing Material: Polyamide (PA)

Wire Gauge Range: 10 AWG to 14 AWG

Locking Mechanism: Integrated in Housing

Termination Style: Crimp

Ingress Protection: IP68

Number of Positions: 2 Position

Attachment Hole Diameter: 2.5 mm

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
