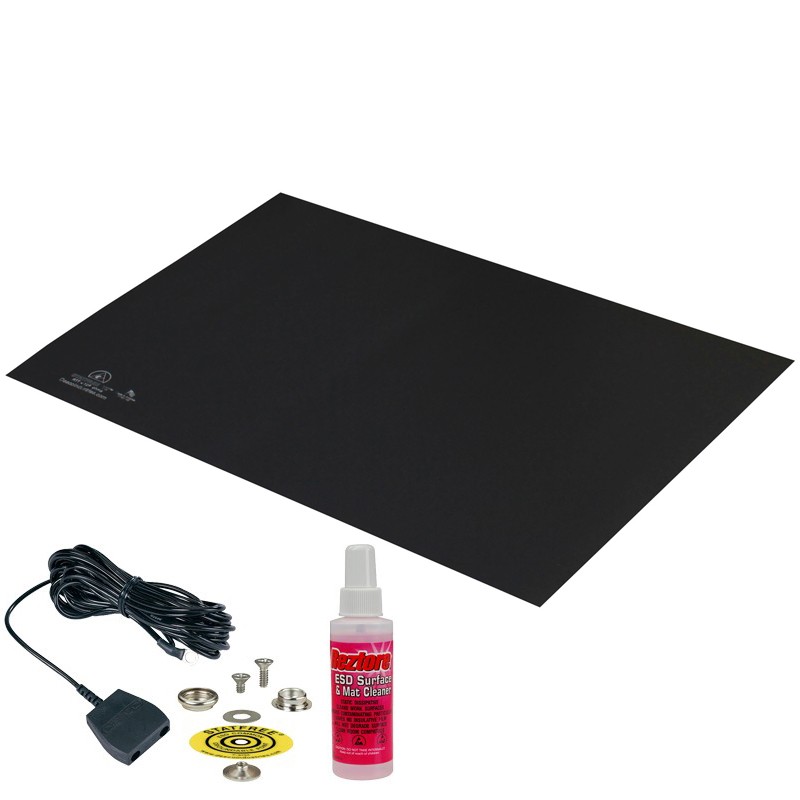

Desco 66442 Dissipative Dual Layer Rubber Mat Top Kit (.060" x 36" x 72")

Dissipative Surface Layer

Rtt Resistance: 1x10^6 to < 1x10^9 ohms

Rtg Resistance: 1x10^6 to < 1x10^9 ohms

Ground Plane Layer

Rtt Resistance: < 1x10^6 ohms

Physical Properties

Construction: Dual-layer rubber material

Thickness: 0.060”(1.5mm)

Weight: 0.43 lbs./sq.ft.(0.2g/cm2)

Hardness: 65 ± 5 Shore “A”, per ASTM-D2240

Other Properties

Heat Resistance: Does not melt or burn when coming into contact with hot solder and soldering irons.

Chemical Resistance: Resistance to degradation by inorganic acids, organic acids, reducing agents, aliphatic hydrocarbons, mineral oil, aldehydes, and amines.

Oil Absorption Resistance: Resists oil absorption to maintain physical and electrical properties.

Tolerances

Width ± 0.250"

Length ± 0.250" every 1 linear foot of running material.

Thickness ±10%
