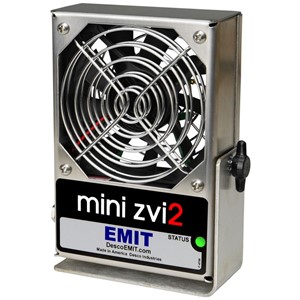

Desco 50642 Mini Zero Volt Ionizer 2 (33 CFM, 51 CFM)

Air Flow: Two speed fan (33 CFM, 51 CFM)

Balance (offset voltage) at 12" in front of Ionizer: ±5 Volts Typical; ±25 Volts Maximum

(Temperature Range: 65°F to 80°F, RH: 15% to 65%)

Chassis: Stainless steel housing and stand

Dimensions (with stand): 5.3" x 3.5" x 1.7" (14 cm x 9 cm x 4 cm)

Emitter Points: .050" base diameter; Made of pure tungsten

High Voltage Power Supply: 5.5kV DC nominal

Input Power: 24 VDC, center positive, 2.5 x 5.5 mm power jack

Ion Emission: Steady-state DC with sense feedback

Mounting: Bench top tilt adjust frame

Ozone: < 0.05 ppm

Weight: 1.1 lbs (0.5 kg)

TB-6590 - Mini Zero Volt Ionizer 2 - Installation, Operation and Maintenance
