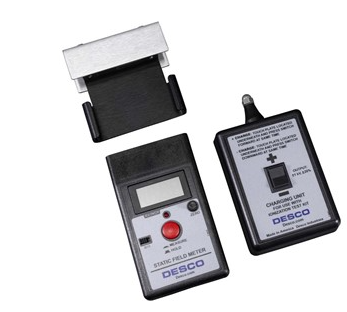

Desco 19443 Digital Static Field Meter Ionization Verification Kit (0 to ±19.99 kV / inch)

Dimensions: 0.9" H x 2.8" W x 4.9"L

(24 mm x 70 mm x 126 mm)

Weight: 4.9 oz. (140 g) with battery

Temperature: 50 to 86ºF (10 to 30ºC)

Relative Humidity: To 80%, non-condensing

Altitude: To 2000 m

Power: One (1) 9-volt alkaline battery

Operating Time: Greater than 50 hours, with a new battery at 21ºC continuous

Voltage Output: 1/10,000 of measured voltage

Conductive plate Area: 2.95" W x 1.18" L

(7.5 x 3.0 cm)

Assembly Weight: 2.4 oz. (68 g)

Charger Dimensions: 1.1" H x 2.6" W x 4.5" L

(2.8 x 6.6 x 11.4 cm)

Charger Weight: 5 oz. (140 g) with battery

Charger Power

Requirements

One 9-volt alkaline battery

Charger Output (using

Digital Static Field

Meter with conductive

plate)

1.1 kV minimum for ± voltage

Certifications CE

TB-3090 - Static Sensor and Air Ionizer Test Kit Operation and Maintenance
