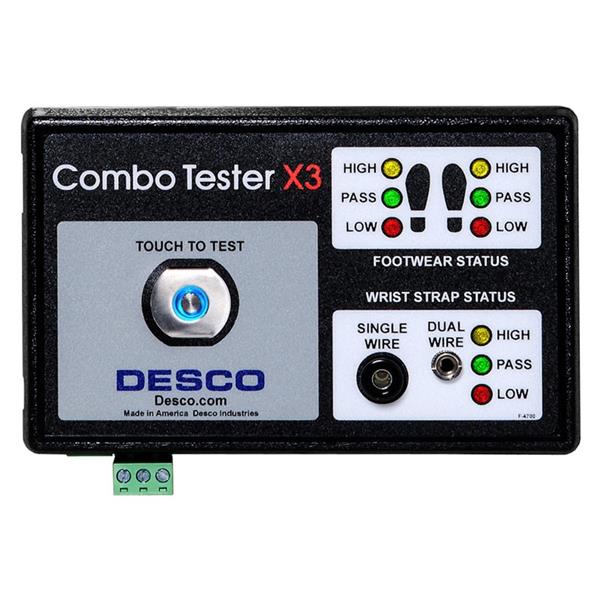

Desco 19275 Anti-Static Control Products COMBO TESTER X3, TESTER ONLY (Tester only)

Input Voltage and Frequency (External Adapter): AC/DC Power Adapter

Power Input: 100-240 VAC, 50/60 Hz

Power Output: 12 VDC, 0.5 A

Cable Length: 6 ft  (1.83 m)

Operating Temperature:

70 to 85 °F (21 to 30 °C) for 1 gigohm test limit

41 to 85 °F (5 to 30 °C) for all other test limits

Environmental Requirements Indoor use only at altitudes less than 6500 ft (2 km)

Maximum relative humidity of 80 % up to 85 °F (30 °C) decreasing linearly to 50 % @ 85 °F (30 °C)

Maximum relative humidity of 50 % at 1 gigohm setting

Dimensions (with mounting plate): 11.35" x 7.75" x 1.47" (288 mm x 197 mm x 37 mm)

Weight (with mounting plate): 1.2 lbs (0.5 kg)

Test Accuracy:

±20 % for 1 gigohm footwear test limit

±10 % for all other test limits

Test Switch Voltage 5 VDC @ open circuit

Wrist Strap and Footwear Test Voltage:

30 VDC @ open circuit

Test current is limited by resistors and varies on the test range setting (100 kilohms - 1 gigohm)

Relay Contact Rating: 1 A @ 30 VDC max

Tech Specs

Personnel Grounding Testers Template

Testing Material: Wrist straps and footwear

Test Equipment General Attributes

Unique Features: Combo Tester X3 - tester only. Does not include stand or dual foot plate

Product Weight: 0.68 LBS

Power Supply Voltage: 120V/220V Universal
