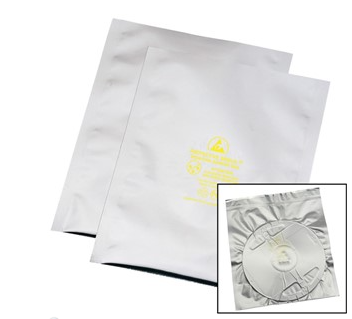

Desco 13950 Statshield Moisture Barrier Bag (4 MIL, 10" x 20")

Surface Resistance

(both exterior and interior): 1 x 10^4 to < 1 x 10^11 ohms

Discharge Shielding: <10 nJ

Static Shielding: 20 volts

Charge Generation

Teflon: -0.09 nC/sq. in.

Quartz: +0.10 nC/sq. in.

EMI Attenuation: 45 db

Film Thickness: Nominal 4.0 mil (0.10mm) ±10%

Width (Inside Dimensions): Nominal -0" / + 1/4"

Length (Inside Dimensions): Nominal +/- 1/8",

Opening Offset: 0" to 1/4"

Tensile Strength: 13000 PSI

Puncture Strength: >25 lbs

Seal Strength: >12 PSI

MVTR: ≤0.003/g/100sq.in./24hours
