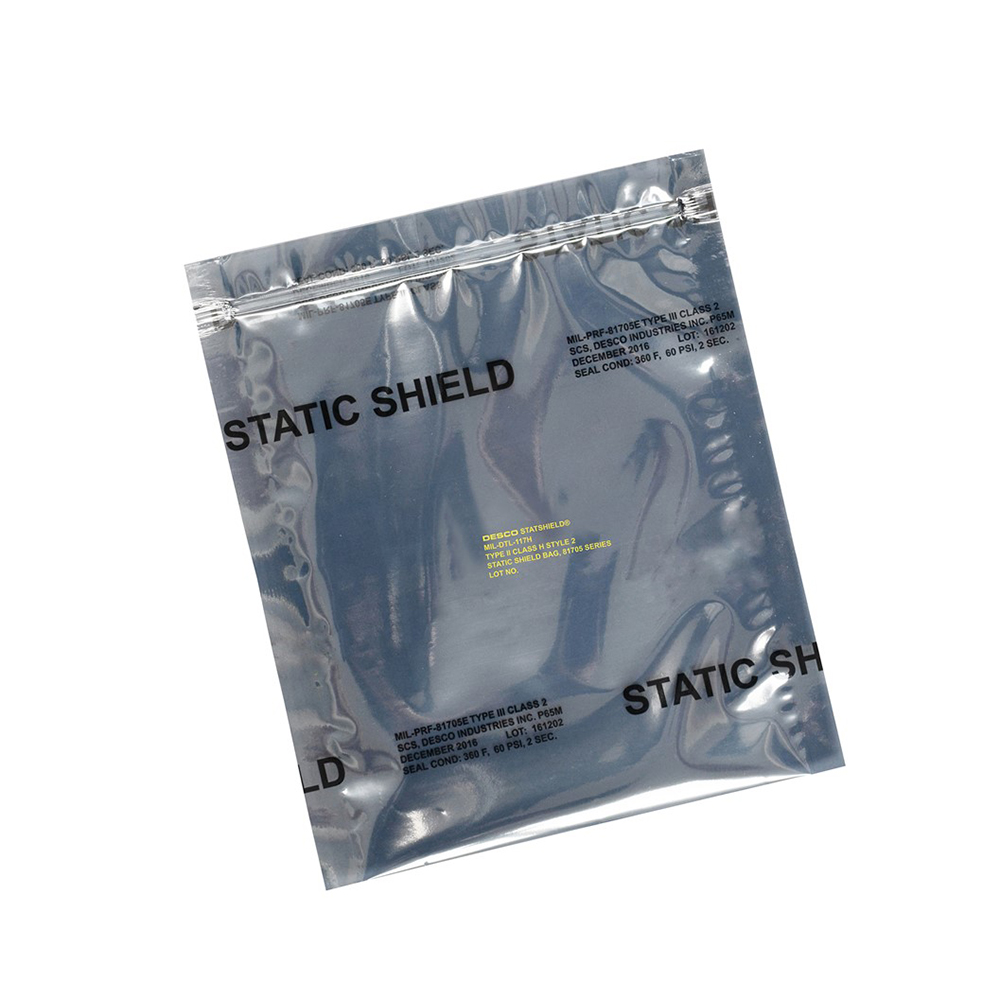

Desco 12927 Static Shield Metal-In Bag (3" x 5", 100 EA/PK)

Electrical Propertities

Surface Resistance:

Outer Surface: < 1 x 10^12 ohms/sq

Inner Surface: ≥ 1 x 10^5 to < 1 x 10^12 ohms/sq

Discharge Shielding: ≤ 10 nJ

EMI Attenuation: ≥ 10 db

Static Decay: ≤ 2 seconds

Physical Properties

Film Thickness: 2.8 mils, 0.071 mm ± 10%

Tensile Strength: 4600 PSI, 32 MPa

Puncture Resistance: 12 lbs, 53 N

Non-corrosive: Pass

Marking Abrasion Resistance: Pass

Transparency: 40%

Heat Sealing Conditions

Temperature: 360°F, 182°C

Time: 2 seconds

Pressure: 60 PSI, 414 KPa

Datasheet
