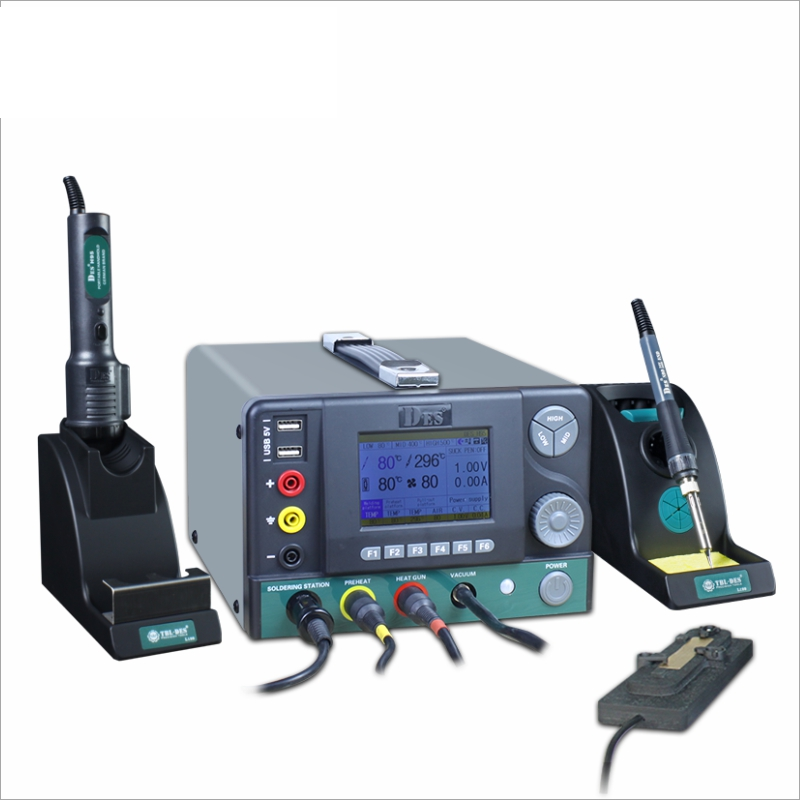

DES Tools H95 5 in 1 Integrated Maintenance System

5 in 1 Multi-functional Integrated Maintenance Platform (H95)

Model: H95

Display: Intelligent LCD display

Peak power: 1800W

Voltage: 220VAC/50Hz, 110VAC/60Hz

Main machine dimension: 230(L) × 197(W) × 140(H) mm

Machine weight: 2.37 kg

Soldering Iron (S90 handle)

Power consumption: 90W

Temperature range: 80–500°C

Resistance between tip and ground: ≤2Ω

Tip to ground voltage: ≤2 mV

Tip model: Compatible with T series soldering tip

Heating element: A1529

Output voltage: 24V

High temperature cuff: GT04

Cable length: 1.2 m

Handle weight: 100 g

Hot Air Gun (H95)

Peak power: 1500W

Temperature range: 80–500°C

Temperature stability: ±5°C

Air volume: Level 10–80

DC turbine fan: 12V / 8300 rpm

High temperature cuff: GP5 / GP6 (optional)

Heating element: A1526B (220V) / A1525B (110V)

Output voltage: 220V / 110V

Handle cable length: 1.2 m

Weight: 200 g

Vacuum Suck Pen

Power consumption: 10W

Pump: Diaphragm type

Max vacuum pressure: 280 mmHg

Suction pen size: 123(L) × 10 mm

Flexible pipe: 1200(L) × 6 mm

Weight: 25 g

Nozzle size: 0.4 mm / 1.1 mm

Outer diameter: 3 mm / 10 mm

Material: Conductive silicone rubber

Heating Platform (P1 / P2 / P3)

Temperature range: 80–300°C (176–572°F)

P1: 90W, A1529, 165 × 65 × 25 mm, 430 g

P2: 80W, A1540×2, 165 × 65 × 20 mm, 500 g

P3: 80W, A1540×2, 126 × 60 × 15 mm, 501 g

Tip to ground resistance: ≤2Ω

Tip to ground voltage: ≤2 mV

Output voltage: 24V

Adjustable Stabilized Power Supply

Output voltage: 1.00–20.00V

Output current: 0.01–5.00A

Power: 100W

Load regulation: Voltage 0.02% + 2mV / Current 0.02% + 2mA

Setting accuracy: Voltage 0.1% / Current 0.1%

Display accuracy: Voltage 0.1% / Current 0.1%
