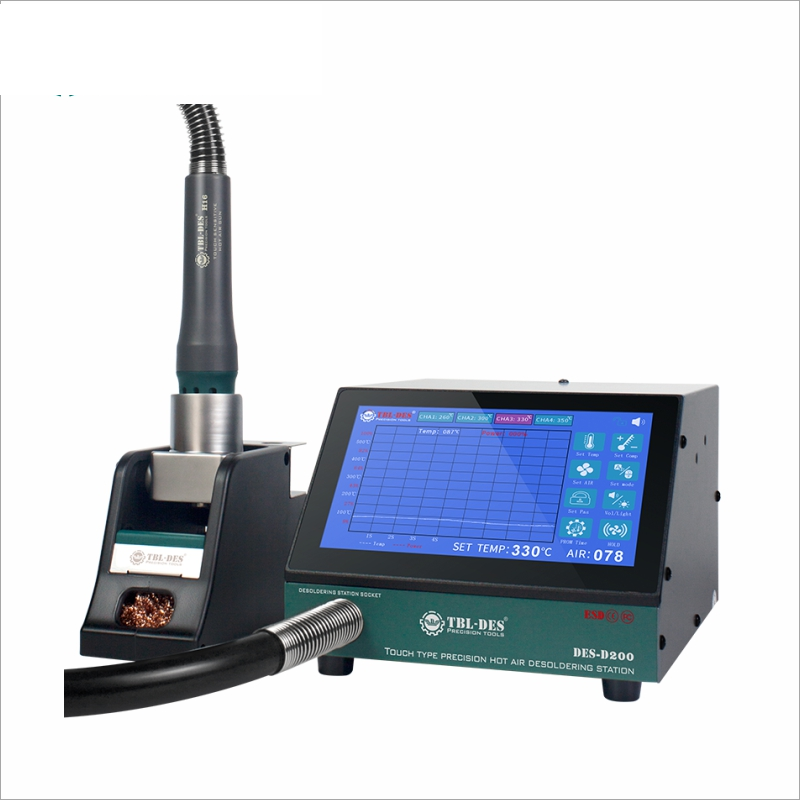

DES Tools D200 Touch type precision hot air gun station (80~500°C; 1000W)

Touch precision hot air desoldering platform

Model: DES-D200

Display: TFT touch capacitive display

Power: 1000W

Voltage: AC220V/50Hz AC110V/60Hz

Range of air volume: 1~120 class

Maximum air volume: 128 L/min

Size of the host: 218(L) × 184(W) × 137(H) mm

Body weight: 1.75 kg (Host) / 3.35 kg (Packing gross weight)

Touch-sensitive hot air gun

Model: DES-H16

Power: 1000W

Temperature control range: 80~500°C (176~932°F)

Temperature stability: ±5°C

Heating element: 220V/A1528 110V/A1518

High temperature set of head: GP10

Handle cable length: 850 mm

Weight: 0.21 kg

Features:

7" touch capacitive screen, full touch humanized operating system.

Programmable area heating function, timing temperature adjustment, sleep.

Real-time display of temperature and power dynamic curve monitoring.

With CHA1, CHA2, CHA3, CHA4 working channels, and can edit and set the air volume and temperature of each channel.

It comes with two display modes in Chinese and English.

The system is equipped with automatic cooling function of large air volume to prolong the life of heating element and protect the heating element.

Microcomputer temperature complement, static temperature error is less than ±1°C.

Password management system, avoid others to change the function settings.

Sensor closed loop, microcomputer zero-crossing trigger temperature control, high power, rapid temperature rise; regardless of the air volume, the output temperature remains accurate and stable.

Static-free design, especially safe for sensitive components.

Adopt brushless turbine fan, adjustable air flow, wide range, can adapt to a variety of applications.

Touch-sensitive startup design is convenient and quick.
