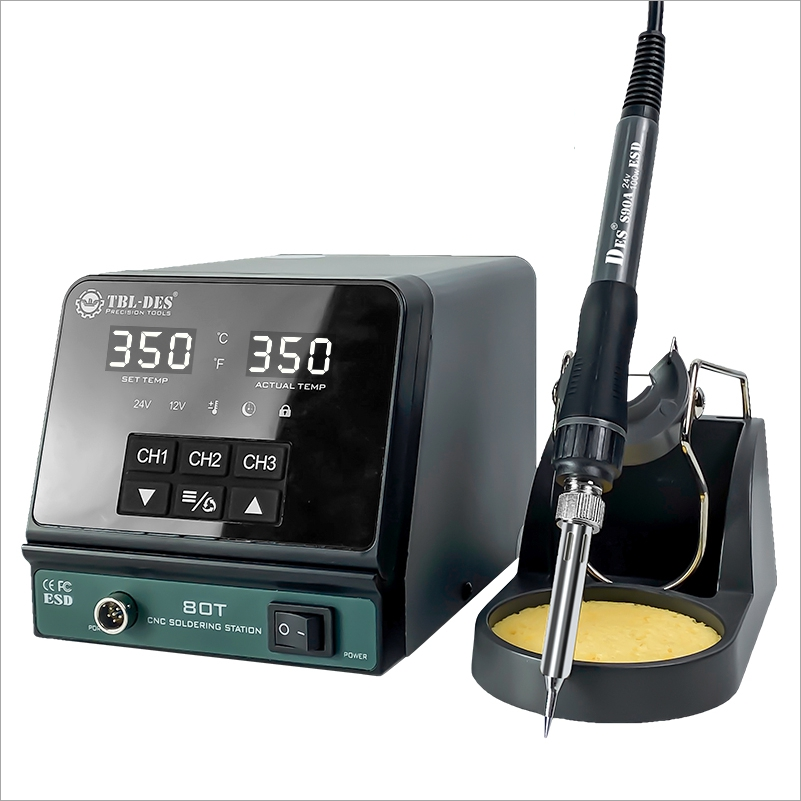

DES Tools 80T Soldering station (100W)

80T Flip Screen Intelligent Soldering Station

Model: 80T

Peak power: 110W

Display: Intelligent digital display

Voltage: 220V/50Hz, 110V/60Hz

Temperature range: 80–480°C (176–896°F)

Temperature stability: ±5°C

Host size: 180 × 120 × 115 mm

Machine weight: 1.9 kg

Soldering Iron (S90A)

Model: S90A

Power consumption: 100W

Temperature range: 80–480°C

Heater: A1529

Tip model: T series soldering tip

High temperature resistant head: GT04

Ground impedance: ≤2Ω

Output voltage: 24V

Tip leakage voltage: ≤2 mV

Dielectric strength: ≥1000V

Handle cable length: 1.2 m

Soldering iron weight: 90 g

7" touch capacitive screen, full-touch humanized operating system.

Programmable area heating function, timing temperature adjustment, sleep mode.

Real-time display of temperature and power dynamic curve monitoring.

With CHA1, CHA2, CHA3, CHA4 working channels, and can edit and set the air volume and temperature of each channel.

Comes with two display modes in Chinese and English.

The system is equipped with automatic cooling function with large air volume to extend the life of the heating element and protect it.

Microcomputer temperature compensation, static temperature error less than ±1°C.

Password management system to prevent unauthorized changes to function settings.

Closed-loop sensor control, microcomputer zero-crossing trigger temperature control, high power and rapid heating; output temperature remains accurate and stable regardless of air volume.

Static-free design, especially safe for sensitive components.

Adopts brushless turbine fan, adjustable air volume, wide range, suitable for various applications.

Touch-sensitive startup design, convenient and quick.
