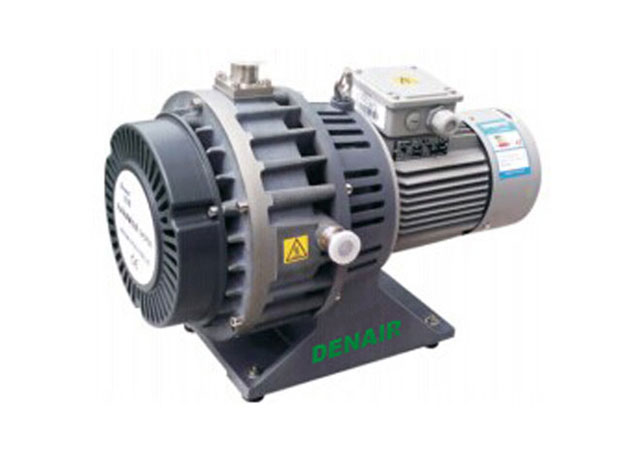

Denair DSC8 High-Vacuum Scroll Vacuum Pump (2.0 L/s (50Hz), 2.4L/s (60Hz))

Pumping Speed

50 Hz: 2.0 L/s, 120 L/min, 7.2 m³/h, 4.3 cfm

60 Hz: 2.4 L/s, 144 L/min, 8.6 m³/h, 5.1 cfm

Ultimate Vacuum

Pa: < 6.0

Torr: ≤ 4.0 × 10⁻²

Psi: ≤ 9.0 × 10⁻⁴

Noise: ≤ 57 dB(A)

Leakage Rate: —

Max Inlet / Outlet Pressure: 0.1 / 0.13 MPa

Temp. Range: 5 – 40 °C

Cooling Mode: —

Flange: KF25 / KF16

Power: 0.55 kW

Voltage: 200–230 V 50 Hz / 110–115 V 60 Hz

Speed: 1425 rpm (50 Hz) / 1725 rpm (60 Hz)

Dimensions

Single-phase: 460 × 265 × 295 mm

Three-phase: 460 × 265 × 295 mm

Net Weight

Single-phase: 22 kg

Three-phase: 21 kg

Datasheet
