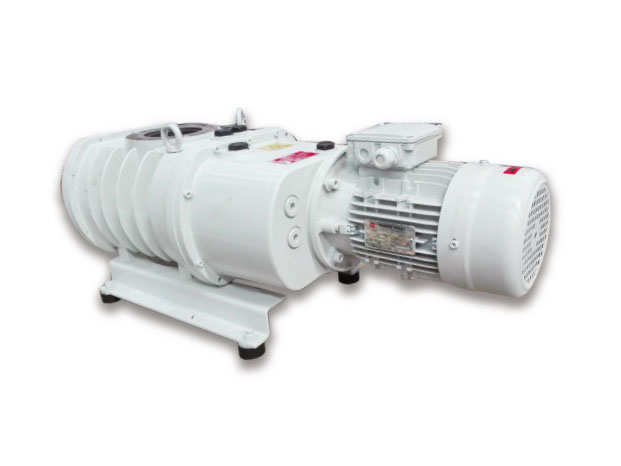

Denair DRF1000 Roots Vacuum Pump (＜2 Pa; 1000 m³/h (50Hz); ＜2 Pa; 1200 m³/h (60Hz))

50Hz:

- Nominal Pumping Speed (m³/h): 1000

- Nominal Pumping Speed (L/S): 278

- Ultimate pressure* (Pa): ＜2

- Motor power** (kw): 3.0/4.0

- Motor rated rotation (rpm): 2900

- Noise level (db(A)): 68

60Hz:

- Nominal Pumping Speed (m³/h): 1200

- Nominal Pumping Speed (L/S): 333

- Ultimate pressure* (Pa): ＜2

- Motor power** (kw): 3.0/4.0

- Motor rated rotation (rpm): 3480

- Noise level (db(A)): 69

Inlet connection (DN): ISO160

Outlet connection (DN): ISO100

A end oil capacity (Liter): 2.4

B end oil capacity (Liter): 1.3

Sealing oil capacity (Liter): 0.13

Cooling water connection*** (Inch): 3/8"

Gross weight (kg): 155

Dimensions(L*W*H) (mm): 992*330*384

*) Specifications are subject to change without prior notice
