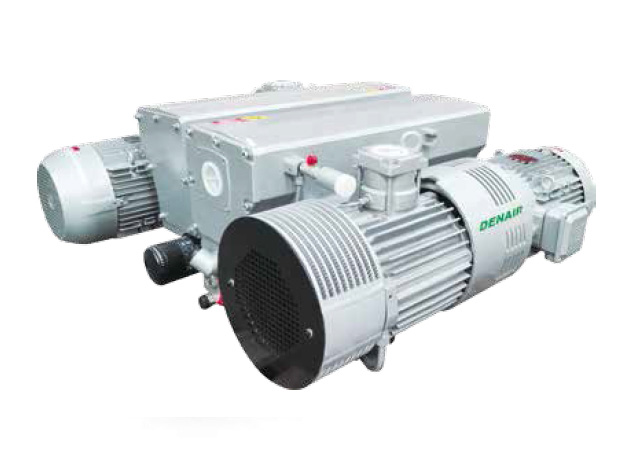

Denair DPX100 Single-stage Rotary Vane Vacuum Pump (100 m³/h; 2.2kW(50Hz); 120 m³/h; 3kW(60Hz); 0.5mbar)

Pumping:

50HZ: 100 m³/h; 27 L/s

60HZ: 120 m³/h; 33 L/s

Ultimate Pressure (mbar ): 0.5

Ultimate full pressure (Gas ballast valve closed) (mbar): -

Ultimate full pressure (Single ballast valve closed) (mbar): -

Ultimate full pressure (Double ballast valve closed) (mbar): -

Motor power (kW): 2.2 kW (50Hz); 3 kW (60Hz)

Motor speed (rpm): 1450 rpm (50Hz); 1700 rpm (60Hz)

Noise dB(A): 66 db(A) (50Hz); 67 db(A) (60Hz)

Inlet Size (DN) : G1-1/4"

Outlet Size (DN) : G1-1/4"

Maximium water vapor extraction (kg/h): 1.5 kg/h (50Hz); 2 kg/h (60Hz)

Oil injection quantity (L): 2

Cooling Mode : Air cooled

Weight (kg): 69 kg (50Hz); 75 kg (60Hz)

Dimensions (mm) (LxWxH): 710x405x290
