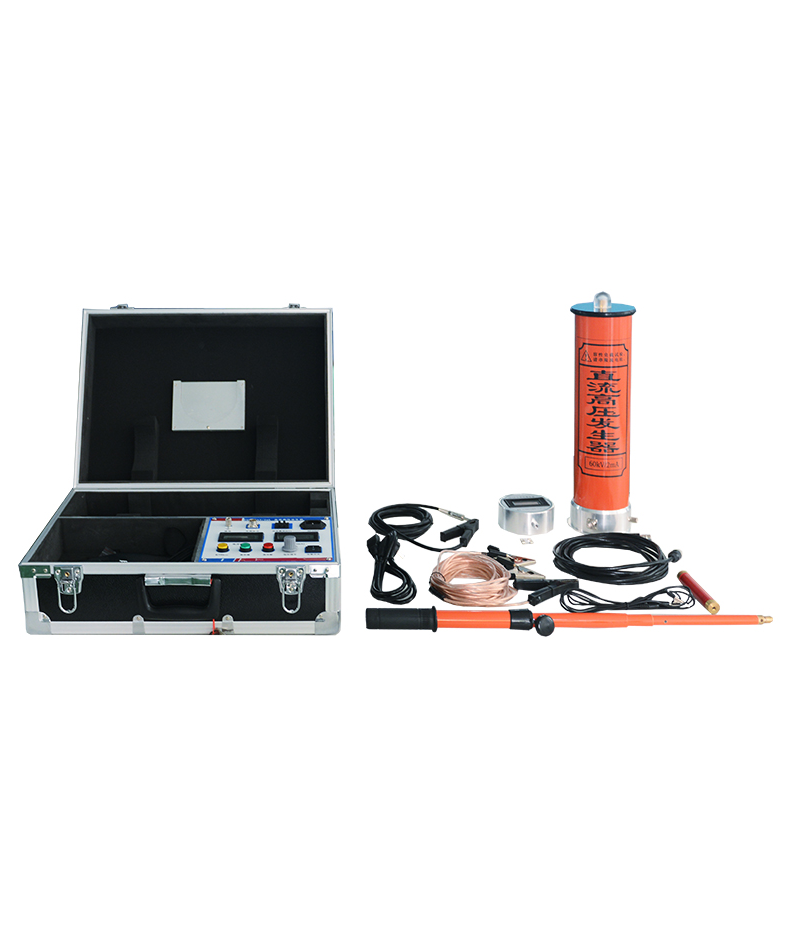

DEMIKS ZGF-60kV2mA DC High Voltage Tester (60kV, 2mA, 120W)

Rated voltage（kV): 60

Rated current（mA): 2

Rated power（W): 120

Mass of the whole   machine（kg): 9

Volume of the whole   machine（mm³): 465*390*190

Height of the voltage   doubling cylinder（mm): 440

Accuracy of the output   voltage: ± (1.0% of the reading ± 2 digits)

Accuracy of the output   current: ± (1.0% of the reading ± 2 digits)

Ripple coefficient: ≤0.5%

Working mode: It is for intermittent use, with a rated load duration of 30 minutes.

Overload capacity: The no-load voltage can exceed the rated voltage by 10% and be used for 10 minutes.

The maximum charging current is 1.25 times the rated current.

Power: AC220V±10% 50HZ

Working environment

Temperature: -10℃ to 40℃

Relative humidity: It   should not be greater than 85% (without condensation) when the room temperature is 25℃.

Altitude: Below 1,500   meters
