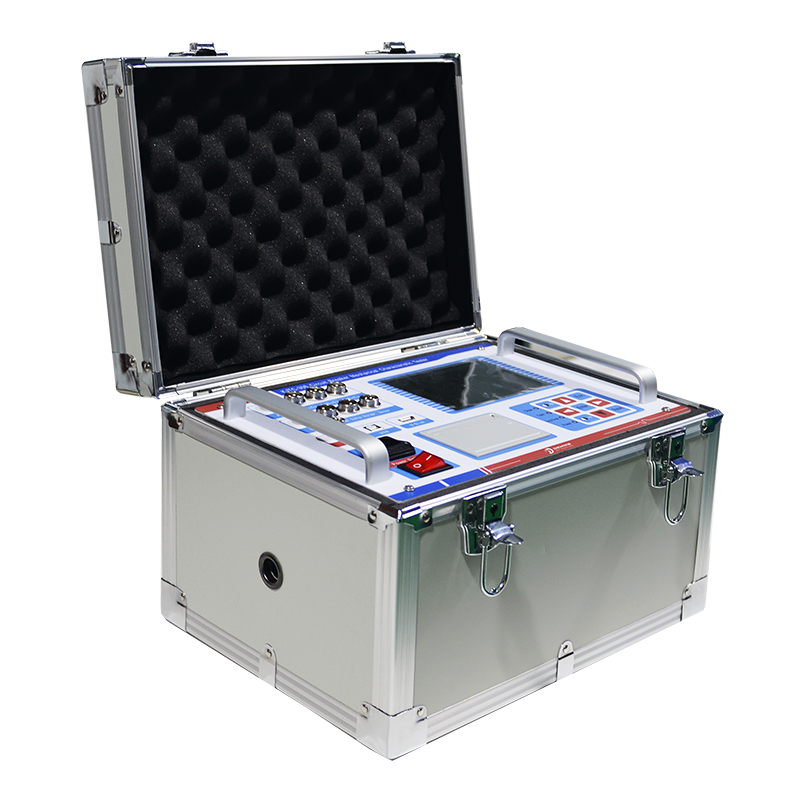

DEMIKS DTC-306 High Voltage Circuit Breaker Characteristic Analyzer (220V ±10% 50Hz ±10%)

Operating Environment

Input Power: 220V±10% 50Hz±10%

Atmospheric Pressure: 80 - 106 kPa

Temperature: -10 - 40°C

Humidity: ≤50%RH

Safety Performance

Insulation Resistance: >2kΩ

Dielectric Strength: 1.5kV power frequency withstand voltage for 1 minute (No flashover or arcing)

Basic Parameters

Time (200ns range): 200.00ns (±0.01ns±2 digits)

Resolution: 0.01ns

Time (2000ns range): 2000.0ns (±0.1ns±2 digits)

Resolution: 0.1ns

Time (20000ns range): 20000ns (±1ns±2 digits)

Resolution: 1ns

Speed (0 - 2m/s): 20.00m/s (±0.1m/s±1 digit)

Resolution: 0.01m/s

Speed (>2m/s): 20.00m/s (±0.2m/s±1 digit)

Resolution: 0.01m/s

Stroke Parameters

Vacuum Circuit Breaker: 50.0nm

Resolution: 0.1nm

SPB Circuit Breaker: 300.0nm

Resolution: 1nm (±0.1nm±1 digit)

Oil - Immersed Circuit   Breaker: 600.0nm

Resolution: 1nm (±0.1nm±1 digit)
