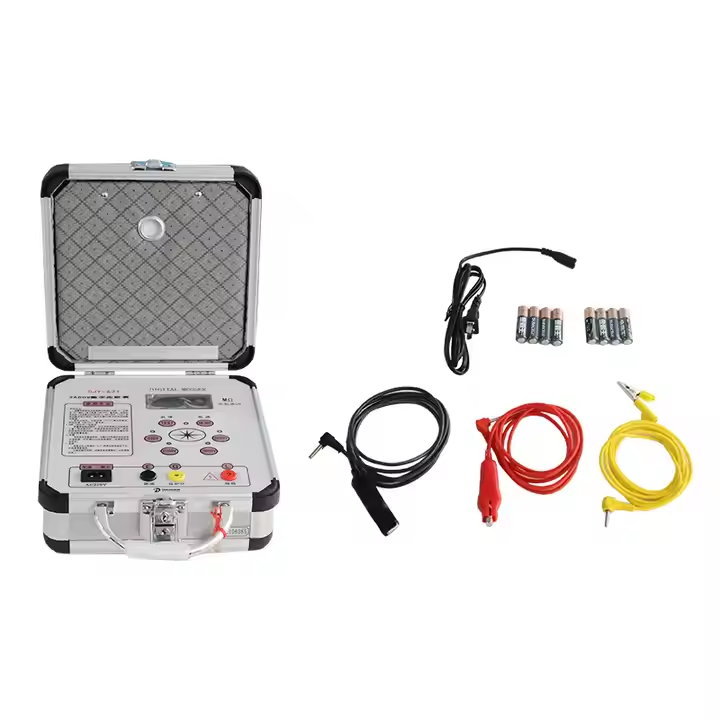

DEMIKS DJY-621 Insulation Resistance Tester (2500V, 19990MΩ)
ManufacturerDEMIKS(View more products from this manufacturer)
ModelDJY-621
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Environment temperauture:0°C~45°C
Relative humandity：≤85%RH
Output voltage: 500V,1000V,2000V,2500V
Measurement range: 0-19990MΩ
Resolution:0.01MΩ, 0.1MΩ,1.0MΩ,10.0MΩ
relative error: 0-2000MΩ<±5%±2d
2000MΩ-19990MΩ≤±10%±2d
Voltage/load:2500V/20MΩ
Short-circuit current:>1.6mA
Voltage dips: about 10%
AC: 8*1.5V(AA,R6)battery
DC: 220V/50Hz
Static power consumption:≤160mW
Maximum power:≤2.5W
Volume:235mm*200mm*135mm
Weight:<1.4kg
