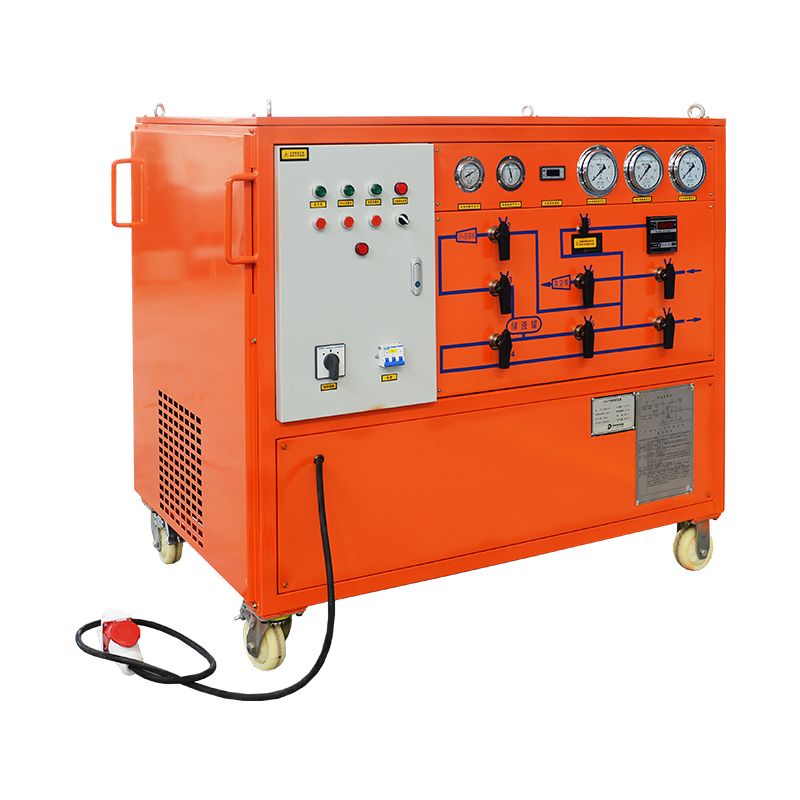

DEMIKS DHS-515-50 SF6 Gas Recovery Device (15m³/h)

Power supply AC (V): 380 (3 phase 5 wires)

Automatic phase sequence conversion

Rated maximum gas storage pressure(20℃) (MPa): ≤4

Limit Vacuum Degree (Pa): ≤10

Device vacuum maintaining (Pa): Keep for 24h at 133Pa pressure, the vacuum value raise < 400Pa

SF6 compressor: French Maneurop

Compressor pumping rate: 7m³/h

vacuum pump: 2X-4

Speed Ratio of Suction (m3/h): 54

Adaptive inlet initial pressure of the   recovery device(20℃) (MPa): 0~1.0

Electrical equipment recovery final pressure(20℃) (MPa): ≤50 Kpa

Gas oil content control after recovery (μg/g): Domestic oil＜10

Annual leakage rate of the device (%): ＜1

Continuous trouble-free operation time of the   device (h): ≥1000

Accumulated trouble-free running time (h): ≥5000

Noise level (dB(A)): complete machine≤75

Theoretical storage capacity (KG): 50

Refrigerated liquefaction compressor: DONPER

Refrigerated storage tank (L): 50

Gas moisture after recovery (PPM/V): 60

Gas oil after recovery (PPM/V): 10

Dry filtration mode: Vacuum heating activation regeneration

At the beginning of air pressure(pa): ≤133

Inflatable end pressure(mpa): 0.8

Inflation rate (m³/h): ≥5

Gasification mode: Electric heating automatic temperature   control

Vehicle type: Hand-propelled mobile

Dimension (cm): 1450×810×1200

Total weight (kg): About 600

Cooling mode: Air cooling

Filter system

Using HASON technology in the United States,   three-stage filtration -- can remove water, oil, particle impurities and dust   in the recovered SF6 gas more efficiently, and ensure the recycled SF6 gas to   be reused

Vacuum pump pumping speed (m3/h): 15

Limit Vacuum Degree (Pa): 10

Vacuum pump: Domestic bipolar vacuum pump

SF6 Recovery compressor (m3/h): 7

Pressure (MPa): 2.5

Compressor brand: MANEUROP

Filter particle (micron): 0.02

Oil content (PPM): efficient

Acid value (PPM): 0.1

Hydrolyzable fluoride (PPM): 0.2

Biotoxicity: No

Moisture (PPM): ≤60

SF6 purity: ≥99.9%

SF6 storage tank: 50L

Material of SF6 storage tank: carbon steel

Refrigerating system: High quality and efficient compressor

Filter: America original package

Dryer: America original package

Vacuum gauge: Pointer

Valve: Unique technology (built-in butterfly seal,   to ensure that multiple switches will not leak)
