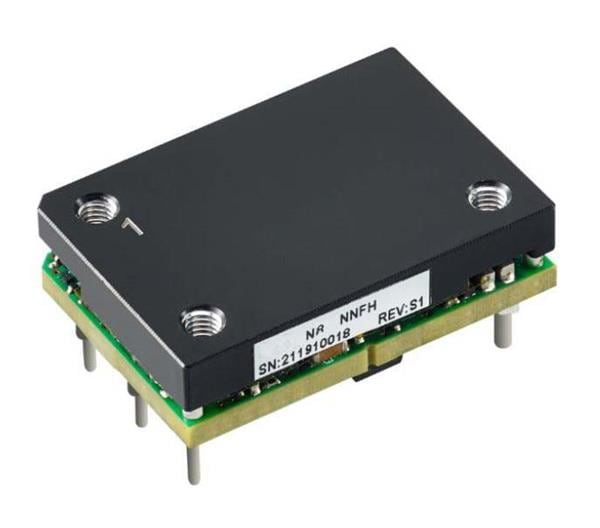

Delta Electronics, Inc. V48SD05024NNFH Isolated 120W 36-60Vin 5Vout 24A 1/16 Brick Neg on/off w/heat spreader

Width: 22.8 mm (0.898 in)

Height: 12.2 mm (0.48 in)

Length: 33 mm (1.299 in)

Industry: Industrial

Dimensions: 33 mm x 22.8 mm x 12.2 mm

Unit Weight: 20 g

Output Power: 120 W

Input Voltage: 36 V to 60 V

Mounting Style: Through Hole

Isolation Voltage: 2.25 kV

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Input Voltage - Max: 60 V

Input Voltage - Min: 36 V

Input Voltage, Nominal: 48 V

Output Current-Channel 1: 24 A

Output Voltage-Channel 1: 5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
