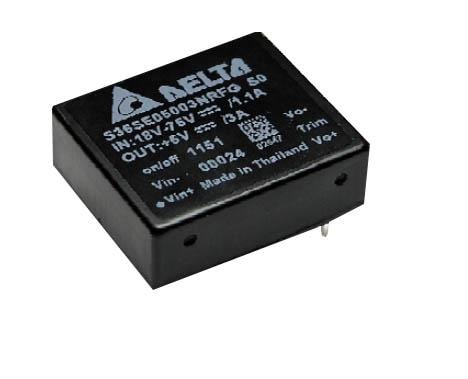

Delta Electronics, Inc. S36SE05003NDFG Isolated 17W 36Vin 5Vout 3A

Width: 25.6 mm (1.008 in)

Height: 10.2 mm (0.402 in)

Length: 29.4 mm (1.157 in)

Industry: Industrial

Dimensions: 29.4 mm x 25.6 mm x 10.2 mm

Application: Automation, Process Control

Output Power: 17 W

Input Voltage: 18 V to 75 V

Mounting Style: Through Hole

Isolation Voltage: 1.5 kV

Number of Outputs: 1 Output

Input Voltage - Max: 75 V

Input Voltage - Min: 18 V

Input Voltage, Nominal: 48 V

Output Current-Channel 1: 3 A

Output Voltage-Channel 1: 5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
