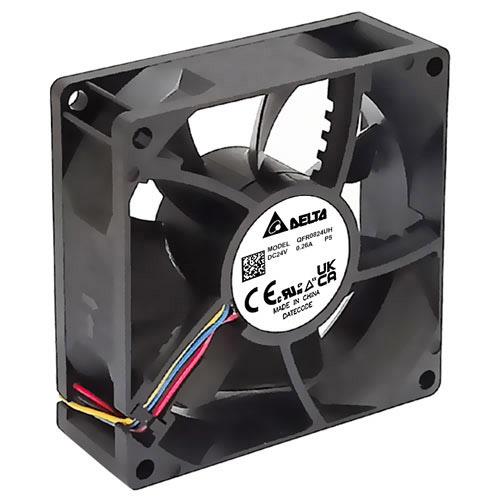

Delta Electronics, Inc. QFR0824UHP5 Axial DC Axial Fan, 80x80x25mm, 24VDC, 65.55CFM, 5.52W, 50dBA, 5400RPM, Tach/PWM, IP55
ModelQFR0824UHP5
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Life: 70000 Hour
Size: 80 mm
Depth: 25 mm
Noise: 50 dBA
Speed: 5400 RPM
Width: 80 mm
Height: 80 mm
Length: 80 mm
Airflow: 65.55 CFM (1.86 m3/min)
Features: Tachometer, PWM
IP Rating: IP55
Lead Length: 300 mm
Unit Weight: 88 g
Bearing Type: Ball
Current Type: DC
Power Rating: 5.52 W
Termination Style: Wire Leads - 4
Operating Supply Voltage: 24 VDC
