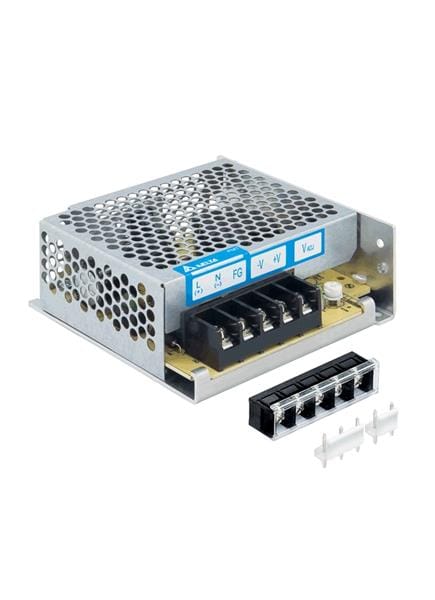

Delta Electronics, Inc. PMT-5V35W1AG Switching Power Supplies 35W / 5V - Front Facing Connector

Width: 98.044 mm (3.86 in)

Height: 38.1 mm (1.5 in)

Length: 98.044 mm (3.86 in)

Industry: Industrial

Approvals: EN60601-1, ES60601-1

Compliance: EN60601-1, ES60601-1

Efficiency: 81 %

Output Power: 35 W

REACH - SVHC: Details

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Panel

Input Frequency: 50 Hz to 60 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Power - Convection: 35 W

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 7 A

Output Voltage-Channel 1: 5 VDC
