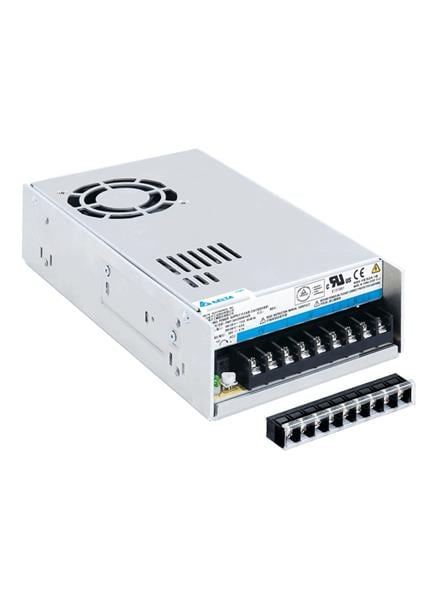

Delta Electronics, Inc. PMT-36V350W1AK Switching Power Supplies 350W / 36V - Front Facing Connector

Width: 115.062 mm (4.53 in)

Height: 50.038 mm (1.97 in)

Length: 214.884 mm (8.46 in)

Industry: Industrial

Approvals: EN60601-1, ES60601-1

Compliance: EN60601-1, ES60601-1

Efficiency: 87.5 %

Output Power: 349.2 W

Input Voltage: 100 VAC to 120 VAC, 200 VAC to 240 VAC

Mounting Style: Panel

Input Frequency: 50 Hz to 60 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Power - Convection: 350 W

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 9.7 A

Output Voltage-Channel 1: 36 VDC
