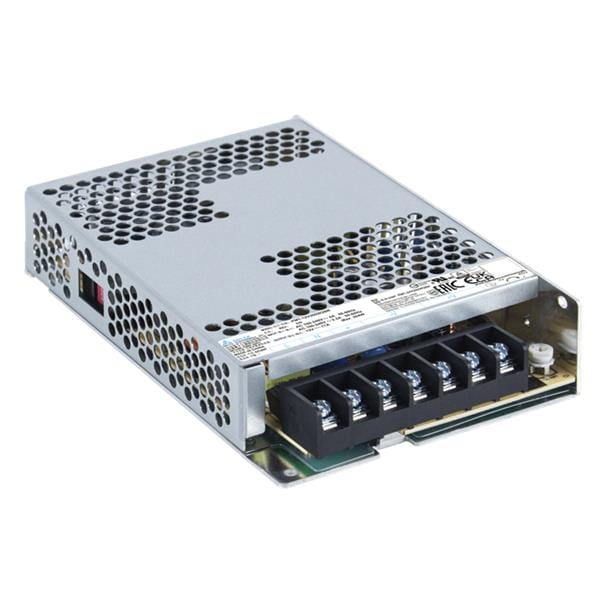

Delta Electronics, Inc. PMT-12V200W2BR Switching Supplies 200W / 12V

Width: 97 mm (3.819 in)

Height: 30 mm (1.181 in)

Length: 159 mm (6.26 in)

Industry: Industrial

Dimensions: 159 mm x 97 mm x 30 mm

Output Power: 200 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 50 Hz to 60 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 17 A

Output Voltage-Channel 1: 12 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
